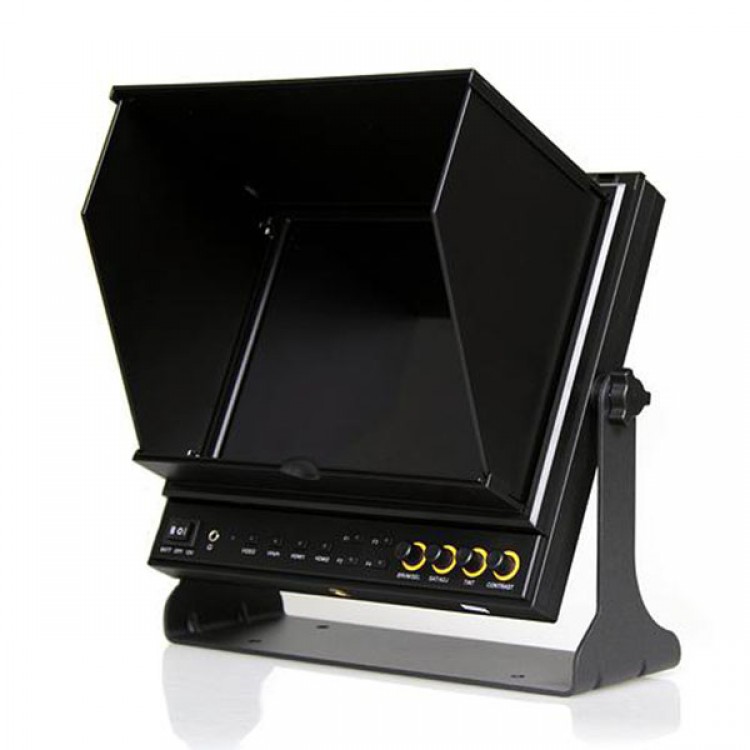

Lilliput 9.7" 969A/P IPS HDMI Field Monitor Peaking Focus with Advanced Functions for Full HD Camcorder

Lilliput 9.7" 969A/P IPS HDMI Field Monitor Peaking Focus with Advanced Functions for Full HD Camcorder

Description:
- 9.7" LED Field Monitor with Advanced Functions for Full HD Camcorder.
- 969A/P (with BNC interfaces)
- Wide viewing angles,
- High resolution: 1024×768,
- High brightness: 420cd/㎡,
- High contrast: 900:1,
- Dual HDMI input,
- USB 5V output for charging,
- Wide voltage: DC 7-24V,
- TALLY interface with indicating light,
- Gimbal bracket for installation,
- Comply with IP52 standard.

Advanced Functions:
 -Peaking Filter, False Colors, Histogram, Exposure, Camera, Center Marker, Pixel-to-Pixel, Color Bar, Screen Marker, Aspect Ratio, Check Field, Underscan/Overscan, Freeze Input, H/V Delay, 8x Zoom, Picture-in-Picture.

Specifications:
- Panel Size: 9.7"
- Physical Resolution: 1024×768
- Aspect Ratio: 4:3
- Brightness: 420cd/㎡
- Contrast: 900:1
- Viewing Angle: 178°/ 178°(H/V)
- Input Signal: HDMI×2, YPbPr, AV, TALLY
- Output Signal: YPbPr, AV, USB(5V)
- Audio: Speaker×1(built-in), Ear Phone Slot×1(built-in)
- Current: 560mA
- Input Voltage: DC 7-24V(XLR Connector)
- Battery Plate: V-mount, Anton Bauer mount, F-970, QM91D, DU21, LP-E6
- Power Consumption: ≤18W
- Operating Temperature: -20℃ ~ 60℃
- Storage Temperature: -30℃ ~ 70℃
- Dimension(LWD): 246×224×31mm/167.5mm(with cover open)
- Weight: 1068g / 1388g (with cover)

Accessories:
- Flexible folding sun shade cover: 1piece
- Battery plate bracket: 1piece
- Battery plate (F-970, QM91D, DU21 or LP-E6,choose 2 of them。We would send F970 and LP-E6 as default, if you need other option, please contact us when you order. )
- HDMI A/A cable: 1piece
- DC 12V power adapter (XLR connector): 1piece
- TALLY connector: 1piece
- Manual: 1copy
- Gimbal bracket : 1piece
- V-mount battery plate (optional): 1piece
- Anton Bauer mount battery plate (optional): 1piece
