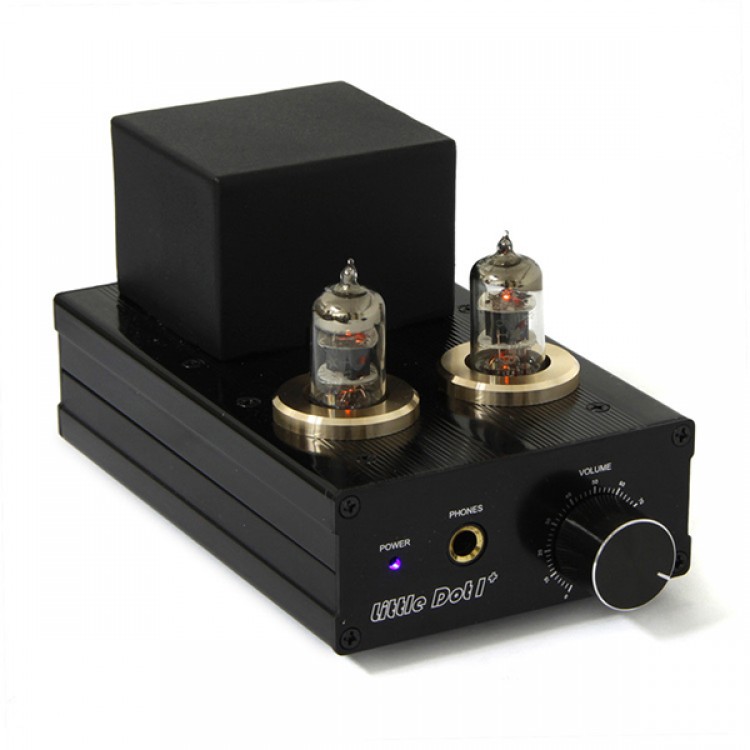

Little Dot I+ 1+ EF92 Tube Transistor Amp Amplifier Upgraded Version 110V/220V Solid-State Headphone Amplifier
  • Little Dot I+ 1+ EF92 Tube Transistor Amp Amplifier Upgraded Version 110V/220V Solid-State Headphone Amplifier
  • Little Dot I+ 1+ EF92 Tube Transistor Amp Amplifier Upgraded Version 110V/220V Solid-State Headphone Amplifier
  • Little Dot I+ 1+ EF92 Tube Transistor Amp Amplifier Upgraded Version 110V/220V Solid-State Headphone Amplifier
  • Little Dot I+ 1+ EF92 Tube Transistor Amp Amplifier Upgraded Version 110V/220V Solid-State Headphone Amplifier
  • Little Dot I+ 1+ EF92 Tube Transistor Amp Amplifier Upgraded Version 110V/220V Solid-State Headphone Amplifier

  • SKU:27996
    (0 reviews)   Write a review(Get Thanksbuyer Points!)
  • Availability: In Stock     Reward Points: 16
  • Price:$156.90
  • Price in reward points: 1569
  • Buy more, save more
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $153.76 $150.62 $145.92 $139.64 Contact US

Little Dot I+ 1+ EF92 Tube Transistor Amp Amplifier Upgraded Version 220V Solid-State Headphone Amplifier

Description:
- The Little Dot I+ is a hybrid transistor-vacuum tube headphone amplifier, which combines the smooth, musical sound of tubes with the high output current of transistors.  The vacuum tube stage is run in Class-A, the MC33078 operational amplifier (socketed) provides voltage amplification, and BD139/BD140 transistors serve as output buffers.  The Little Dot I+ is perfect for driving low impedance headphones that require gobs of current to perform to their full potential.  With two gain settings and DIP switches for vacuum tube rolling, the Little Dot I+ offers versatility and incredible sound quality in a tiny footprint!
- The Little Dot I+ includes the following tube-rolling options (as well as their equivalents): 6JI, WE403A/B, GE5654, M8100, CV4010, EF95, EF92, CV131, and WE408A.

Technical Specifications:
- Input: Gold-Plated Unbalanced Phono (RCA) Jacks
- Output: 1/4" Gold-Plated Stereo Headphone out
- Tube Options:
- 6JI - standard
- Standard tubes with EF92

Frequency Response: 10HZ - 50KHz (-3 dB)
THD+N:
0.2%: 1Vrms @ 1000Hz
0.6%: 3Vrms @ 1000Hz
1.0%: 5Vrms @ 1000Hz
Signal-to-Noise: 92dB
Suitable Headphone Impedance: 8 - 600 ohms
Input Impedance: 50K ohms
Power Output:
150mW @ 300 ohms
300mW @ 120 ohms
800mW @ 32 ohms
User variable gain settings: 6.5x or 3.25x
Power Consumption: 15VA
Measurements:
Metric: 180mm (L) by 97mm (W) by 100mm (H)
English: 7.08 inches (L) by 3.81 inches (W) by 3.93 inches (H)
Weight: 1.5 kg or 3.3 lbs.
Available in Black
Available in either 120VAC or 220VAC(Pls leave message when place order)
