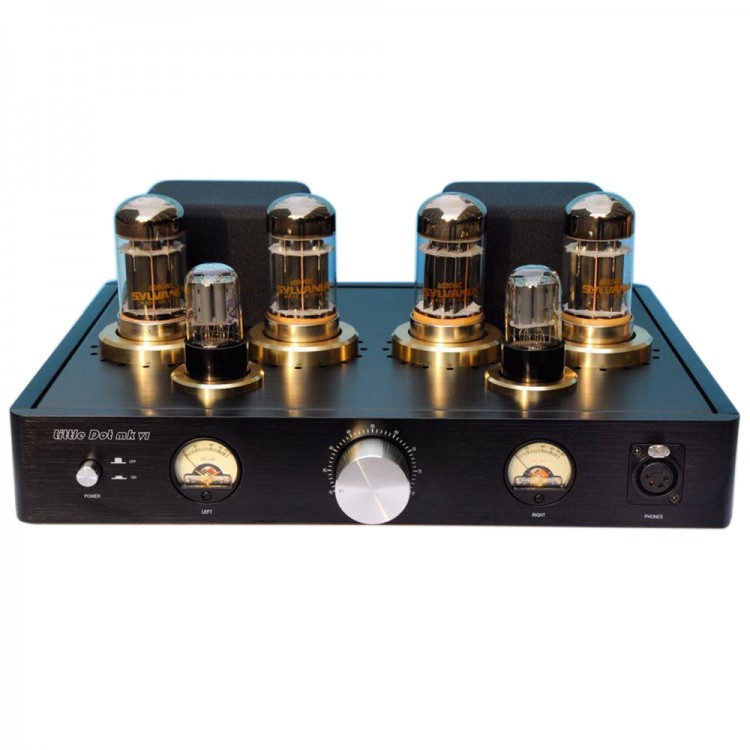

Little Dot MK VI+ MK6+ Balanced Headphone Amplifier Audio Pre-Amplifier Black

Little Dot MK VI+ MK6+ Balanced Headphone Amplifier Audio Pre-Amplifier Black

Description:
The Little Dot MK VI+ is our flagship headphone amplifier/pre-amplifier in the Little Dot MK-series. A fully balanced architecture, the Little Dot MK VI+ has exceptional dynamic range and can produce clean amplitudes of 70Vp-p into 120 ohms! The balanced Class-A SEPP (single-ended push pull) OCL (output capacitor-less) circuit topology delivers rich tonality and brute force clean power for maximum dynamics and low frequency impact.

We carefully selected quality components to make up the Little Dot MK VI+ circuit, and you will find Neutrik, ALPS, Vishay-Dale, WIMA, ERO, and CHEMI-COM among the critical circuit components used.

The Little Dot MK VI+ also adds in user-tweaking options such as two gain settings to delivery maximum compatibility with your headphones!

Technical Specifications:
- Available in either Black (default) or Silver
- Fully Balanced Architecture
- SEPP (Single-ended Push Pull) OCL (Output CapacitorLess) in Class-A
- Active 2 fan cooling
- Driver Tubes: 2x 6H9C
- Power Tubes: 4x 6080WC
- Inputs:
  Balanced: 2x 3-pin XLR
  Single-ended: 2x RCA
- Outputs:
  Balanced: 4-Pin XLR
   Balanced Pre-Amp: 2x 3-pin XLR
- Single-ended: 1/4" (6.35mm) TRS Stereo jack
- Frequency Response:
  5Hz - 80KHz (-3dB)
  10Hz - 30KHz (-1dB)
- Input Impedance: 50K ohms
-  Pre-Amplifier Output Impedance: 600 ohms
- THD+N:
  0.02% (2Vrms @ 1000Hz)
  0.06% (10Vrms @ 1000Hz)
  0.3% (20Vrms @ 1000Hz)
- Signal-to-Noise: 92 dB
- User Selectable Gain Settings: Low (All Headphones) and High (suitable for AKG K1000)

Power Output:
- 5W per channel in 120 ohms
- Power Consumption: 25 VA

Measurements:
- Metric: 350mm (length) by 290mm (width) by 140mm (height)
- Imperial: 13.8 inches (length) by 11.4 inches (width) by 5.5 inches (height)
- Weight: 9.6 kg or 21 lbs
- Available in either 110-120VAC or 220-240VAC

Package included:
- 1 x Headphone Amplifier
