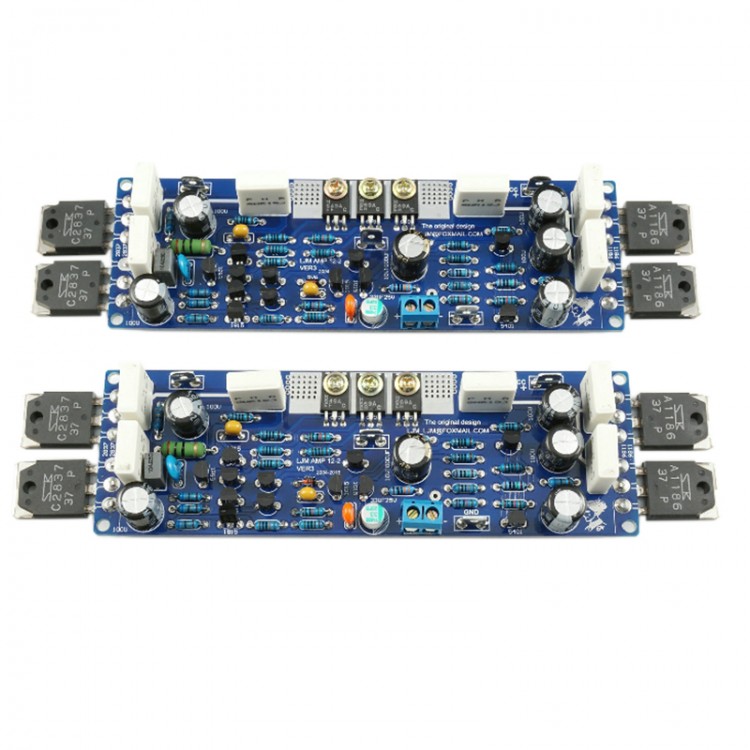

LJM Class AB L12-2 55V 120W Dual Channel Finished Audio Power Amplifier Board Amp

Availability: In stock, usually dispatched in 1 business day

  • Price:$35.42
  • Price in reward points: 354 Reward Points: 4
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $34.71 $34.00 $32.94 $31.52 Contact US
Quantity:

LJM Class AB L12-2 55V 120W Dual Channel Finished Audio Power Amplifier Board Amp

Specification:

- Power Supply: Within ±50V
- Power = 120W /8R  + -50V ; 200W 4R  + -50V
- THD<0.002% 1K HZ 10W
- SR = 35V/US
- Damping coefficient:  >200, 8ohm(load)
- Input sensitivity = 1.6V, output 120W  8R
- Frequency range= 15HZ-50K = HZ (-3DB)
- Static current = 80MA
- Voltage range = DC  positive and negative voltage : +-12V ~ +- 55V
- Voltage amplification factor = 31 times
- Each channel static current: 40mA Class AB

Note: This is the finished board.

Package included:
- 2 x Amplifier Board
