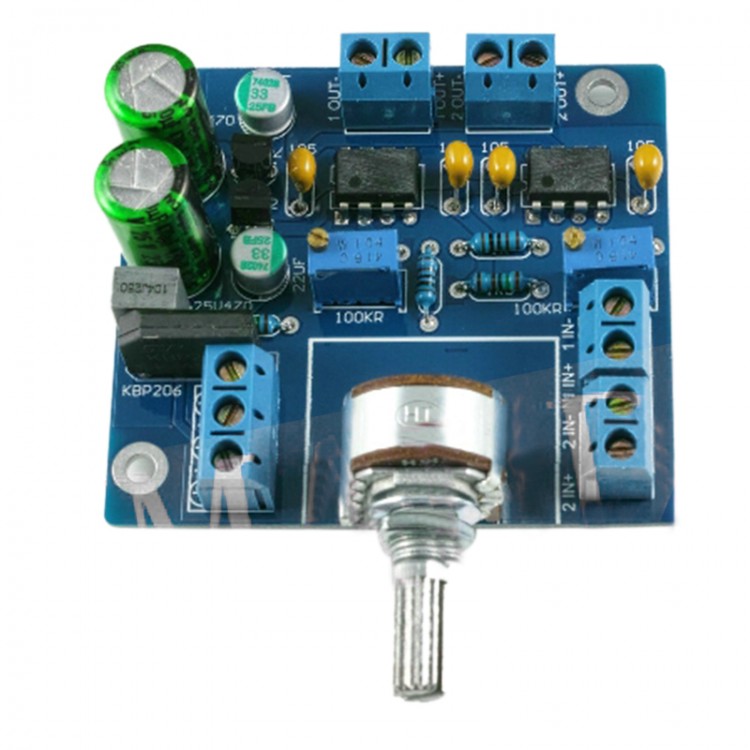

LJM P8 HIFI Dual Channel Pre-Amplifier Board Finished Circuit Board for DIY Audio
  • LJM P8 HIFI Dual Channel Pre-Amplifier Board Finished Circuit Board for DIY Audio
  • LJM P8 HIFI Dual Channel Pre-Amplifier Board Finished Circuit Board for DIY Audio
  • LJM P8 HIFI Dual Channel Pre-Amplifier Board Finished Circuit Board for DIY Audio

  • SKU:42512
    (0 reviews)   Write a review(Get Thanksbuyer Points!)
  • Availability: In Stock     Reward Points: 1
  • Price:$13.24
  • Price in reward points: 132
  • Buy more, save more
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $12.98 $12.71 $12.31 $11.78 Contact US

LJM P8 HIFI Dual Channel Pre-Amplifier Board Finished Circuit Board for DIY Audio

Description:

- P8 Pre-amp power supply needs to use AC12-0-12,
- Output voltage amplification factor: 5 times
- Input impedance: 1K
- Distortion <0.006% THD
- The output DC voltage drift <0.2mv (adjustable)
- Frequency range: 1 hz- 100k Hz (+ 3dB), 20Hz-20KHz (+ -0.1db)
- No input coupling capacitor, no output coupling capacitor.
- The potentiometer is compatible with ALPS16 type, ALPS type 27, A type 20K recommended resistor values (10-100K compatible)
- PCB size = 55*61MM

Package included:
- 1 x Pre-Amplifier Board
