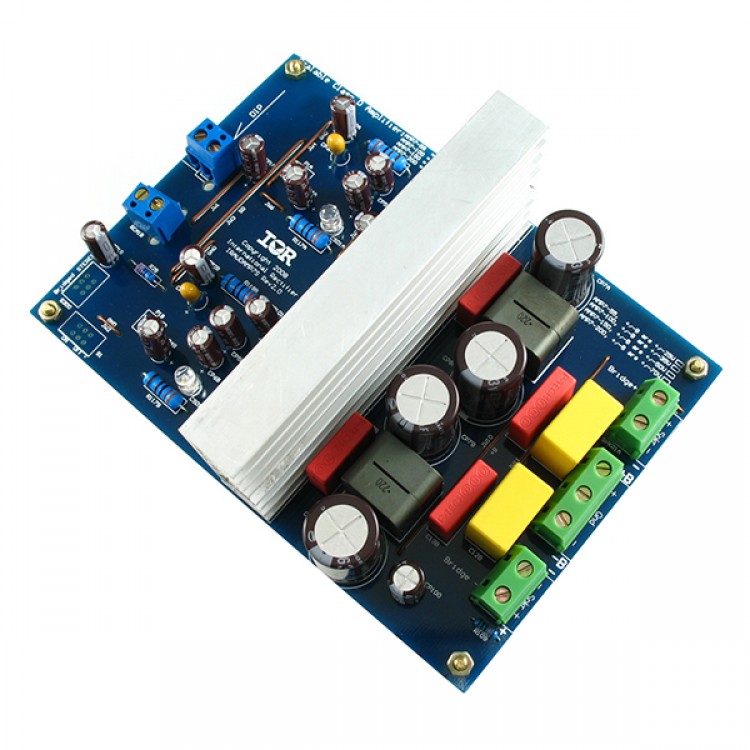

LJM Two-channel L15DX2 IRS2092 CLASS D Power Amplifier IRAUDAMP7S 125-500W



Feature:
- Output Power:  Scalable output power from 25W- 500W
- Residual Noise:  200 μV, IHF-A weighted, AES-17 filter
- Distortion:  0.007 % THD+N @ 60W, 4 R
- Multiple Protection Features:   Over-current protection (OCP), high side and low side MOSFET
- Over-voltage protection (OVP),
- Under-voltage protection (UVP), high side and low side MOSFET
- DC-protection (DCP),
- Over-temperature protection (OTP)
- PWM topology:  Self-oscillating PWM, half-bridge or full-bridge topologies selectable

Parameter:
- Input voltage: Recommend DC+-55V  (50V-60V is OK)
- OUTPUT Power =150W 8R RMS. two-channel
- 300W 4R RMS  two-channel
- Power=  500W  8R   one-channel
- Bridged BTL +-50V   OUTPUT
- Suggest use Dual 40V AC transformer, above 400W.
- PCB size:101* 145 MM

Two-channel power - distortion test:

THD <0.02% Power = 250W two-channel test (power supply +-50V, Load 4R)
THD <0.007% of Power = 50W dual channel testing (power supply +-50V, Load 4R)
Mono test (power supply +-50V, load 8R)
THD <0.007% Power 100W
THD <0.009% Power 200W
THD <0.02% Power 500W
