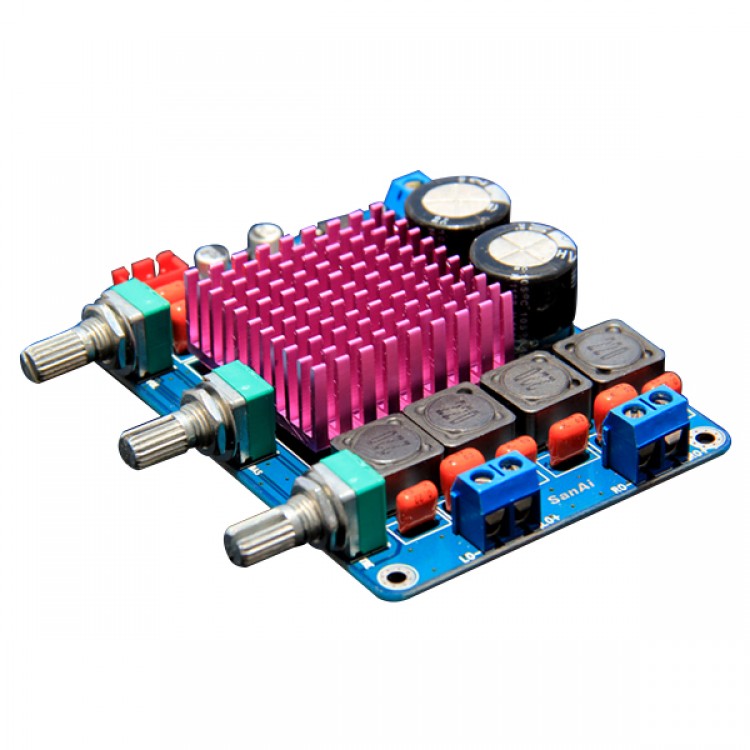

LM1036n Tone Board + TDA7492 2x50W High Power HiFi Amplifier Board for DIY
  • LM1036n Tone Board + TDA7492 2x50W High Power HiFi Amplifier Board for DIY
  • LM1036n Tone Board + TDA7492 2x50W High Power HiFi Amplifier Board for DIY
  • LM1036n Tone Board + TDA7492 2x50W High Power HiFi Amplifier Board for DIY
  • LM1036n Tone Board + TDA7492 2x50W High Power HiFi Amplifier Board for DIY
  • LM1036n Tone Board + TDA7492 2x50W High Power HiFi Amplifier Board for DIY
  • LM1036n Tone Board + TDA7492 2x50W High Power HiFi Amplifier Board for DIY
  • LM1036n Tone Board + TDA7492 2x50W High Power HiFi Amplifier Board for DIY
  • LM1036n Tone Board + TDA7492 2x50W High Power HiFi Amplifier Board for DIY

  • SKU:27103
    (0 reviews)   Write a review(Get Thanksbuyer Points!)
  • Availability: In Stock     Reward Points: 3
  • Price:$25.90
  • Price in reward points: 259
  • Buy more, save more
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $25.38 $24.86 $24.09 $23.05 Contact US

LM1036n Tone Board + TDA7492 2x50W High Power HiFi Amplifier Board for DIY

Specification:
- Voltage: 12V-26V
- Max output power:2X50W (under 6ohm and 25V )/  2X40W( under 8ohm and 25v)
- Efficiency:>=90%
- SNR :88dB
- Distortion:40W/1KHz/25V/6Ω--1%)(50W/1KHz/25V/6Ω--10%)(30W/1KHz/25V/8Ω--1%) (40W/1KHz/25V/8Ω--10%)
- Frequency range:20Hz-20KHz
- input impedance:30KΩ
- Speaker :6-8ohm
- Voltage gain:33.6dB
- Size:86mm*62mm*18mm

Note:
- Max voltage:26V
- Recommend voltage is 24V.5A
-speaker recommend 4-6inch 6ohm or 8ohm
- Audio out put connect correct before use
