LM3886 BTL 1.0 Full Balance Pure After Amplifier Board Kits w/ Heatsink Protection Large Power 120W

1pcs included only, normally you need 2pcs for DIY use


Features
- Not including potentiometer and cooling fin
- This board kits are for professional players
- 2PCS LM3886FT amplifier chip
- Signal channel resistor adopts 718 five ring metal film resistor

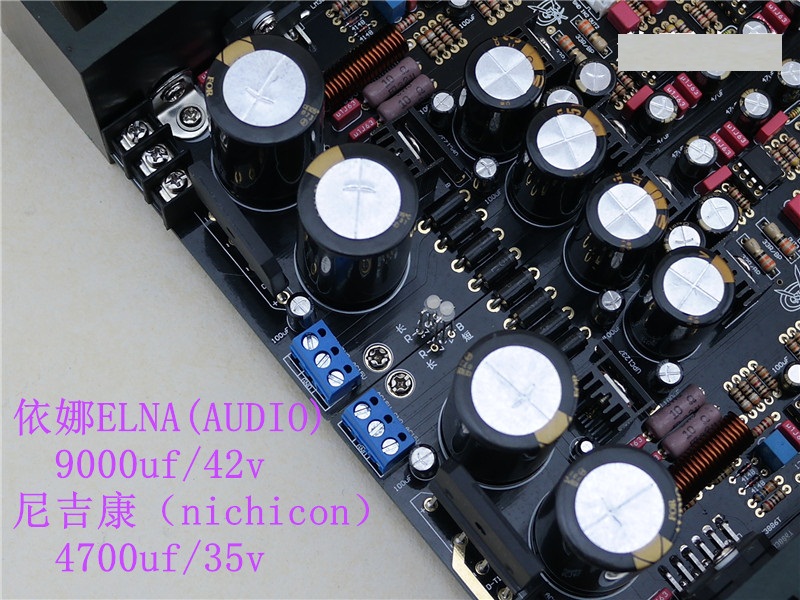

- Preamplifier capacitor adopts ELNA Cerafine and SILMIC II series

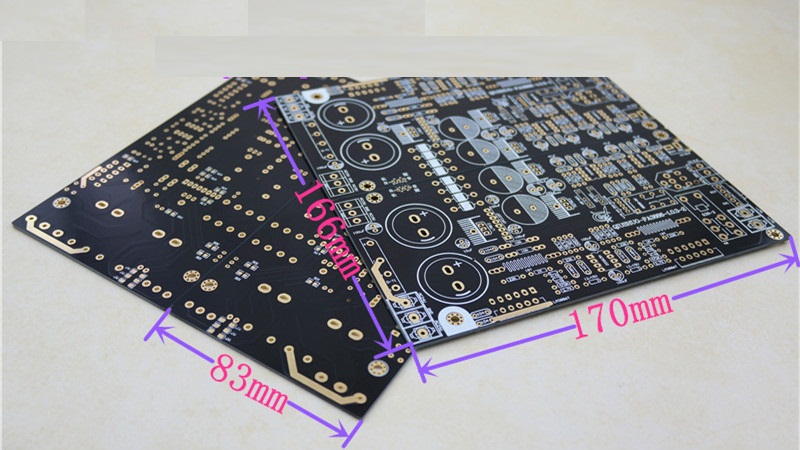

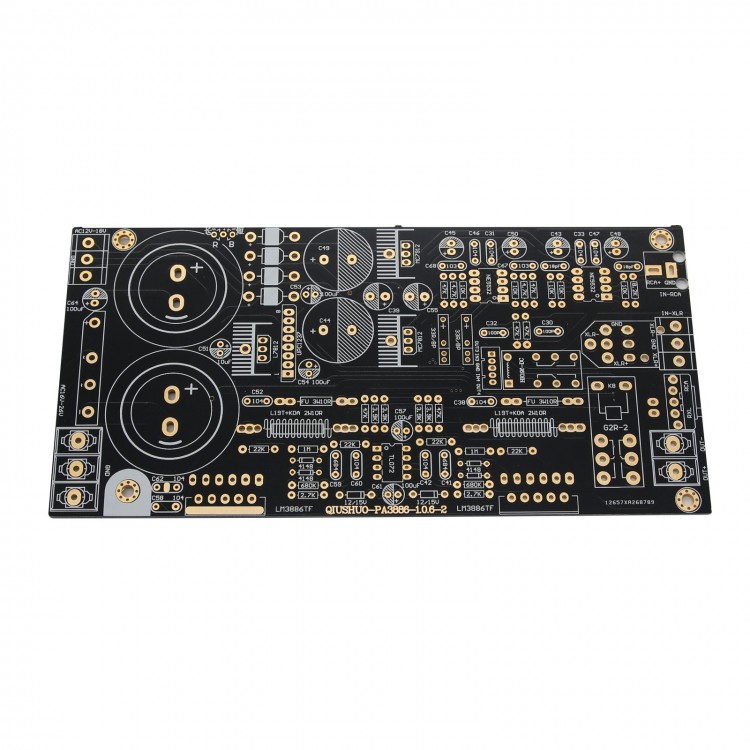

- PCB adopts 1.6mm two sides FR-4 board

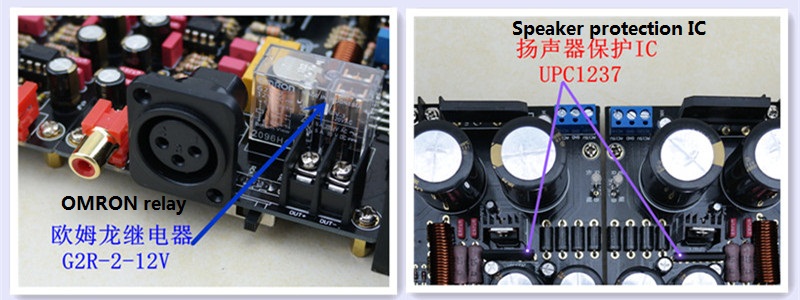

- Loudspeaker circuit adopts advanced C1237 +omron relay loadspeaker
- Pure DC structure

Parameters:
- Output power: 120W
- Power supply voltage: Recommend 150VA AC24-0-24V tranformer, voltage not higher than AC dual 26V
- Loudspeaker resistance: not less than 6ohm 8ohm



Package included:

- 1 x LM3886 amplifier board (Heatsink included)
