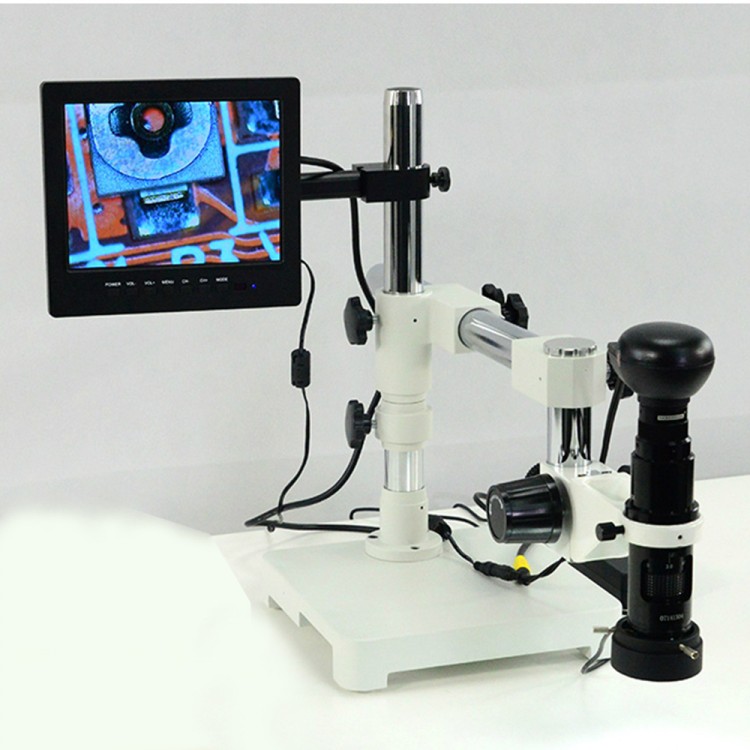

Long Arm Microscope Electron Magnifier Endoscope Continuous Zoom with Monitor
Description:
Long Arm Microscope/video microscope, 360 degree rotational for optics department and can arbitrarily adjust the optical department, but also shortening and lengthening the optical observation arm length in order to change jobs, it can rotate 360 display screen observation angle and buy 0.5x auxiliary lens with optical, working distance (165mm), to meet to the needs of the various inspection.
Specification:
- Magnification: Electron Multiplier: 35X-225X;
- Continuous variable ratio: 1:6.5;
- Support: vertical arm bracket;
- The vertical column height 380mm, diameter of 32mm;
- The focusing column height 104mm, diameter of 32mm;
- Horizontal movement: arm shift length: 235mm;
- Base seat: vertical arm type large base, 230mmX230mmX40mm;
- The diameter of the FOV: Phi 5mm- phi 30mm;
- Working distance: 100mm (plus 2x auxiliary objective is 30mm, plus 0.5x auxiliary objective is 160mm);
- Focusing mechanism: vertical arm support, focusing range 70mm;
- Bracket lifting range: vertical arm support: 50-210mm;
- Screen size: eight inch standard screen, visual range: 162*121.5mm
- Image device: SONY CCD, AV, 700tvl hd;
Package included:
- 1 x Microscope
