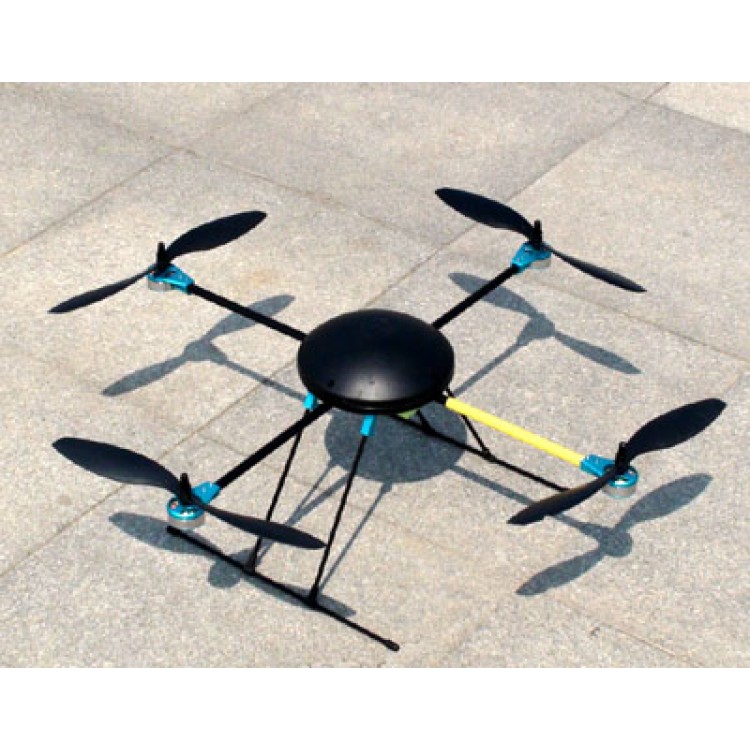

LOTUSRC T580 Quadcopter AP/AV based ARTF - New Protocol

Main features of the T580 quadcopter:

1.ARTF
- Inertial-based(6DOF IMU) self-stabilization system.Good for AV/AP applications,but not suitable for acrobatics flights.
- 4 channels Tx is enough.No more switchs for the flight modes
- ARTF,no extra settings needed.Put on the props,the battery and the RX,then turn on the Tx to take off !

2.AP/AV based
- Auto Barometer-based altitude hold if no throttle input changed in 2s..
- X and Corss flight modes available.Only Cross mode was available in the beginning.But new improvements for the X mode had been tested successfully.
- Optional single axis camera mount(pitch) with double axis self-stabilization(pitch and roll).
- Larger MTM distance(580mm),larger payload (<580g),and longer flight time(25 mins with 3S Battery).Special props offered by the manufacture.

3.Powerful
-Optional GPS position hold(The GPS module still in internal testing, not included in this kit).
- Buzzer warning for low battery,and optional lights for night flight(The interfaces are available,but soldering should be done before coming out of the factory according to the demands of the costomers.In order to avoid some trouble of making the hardware easy to be damaged).
- Other features considering to be supported in the future:Configuration Software available and Firmware upgradable.

*This is the ARTF kit, basically speaking, you only need a receiver and transmitter to get it ready for flying.

Specifications:


Machine size

608 × 608 × 243

mm

±3mm

Expand size of the largest

885 × 885 × 243

mm



Motor Wheelbase
t

Diagonal line, the two motor centers wheelbase

580mm

±3mm

Propeller

1260, positive and negative special paddle

12”



Battery

LiPo 3S 2200mAh 20C

1P



Single Weight

No battery, receiver, load

730g

±10g

Take-off weigh

3S 2200mAh 1P Battery, receiver, head

950g

standard

Payload

Camera card

≤230g

standard

Maximum power pulled

Using the standard battery 1P

2400g



-

Maximum payload

Using the standard battery 1P

≤580g



-

Maximum takeoff weight

Using the standard battery 1P

1800g

Safety limit

Flight distance

Remote control device and battery capacity by the decision

-



-

Flight Time

3S 2200mAh 1P Battery, receiver

12 minutes

No wind hover

Wind strength

≤4

Class



-

Includes:
- 1x Pre-installed aircraft main body, including brushless ESC, flight control panel, motor.
- 1x pre-installed stands unit, including 4 fixed nuts.
- 3x pairs of special propellers in positive and negative.
- 4x bullet blade folders.
- 1x Velcro

* Pan & tilt for camera is not included.
Note: The battery capacity should be 2200mAh,or the ESC or flight controlller would be Burn.
