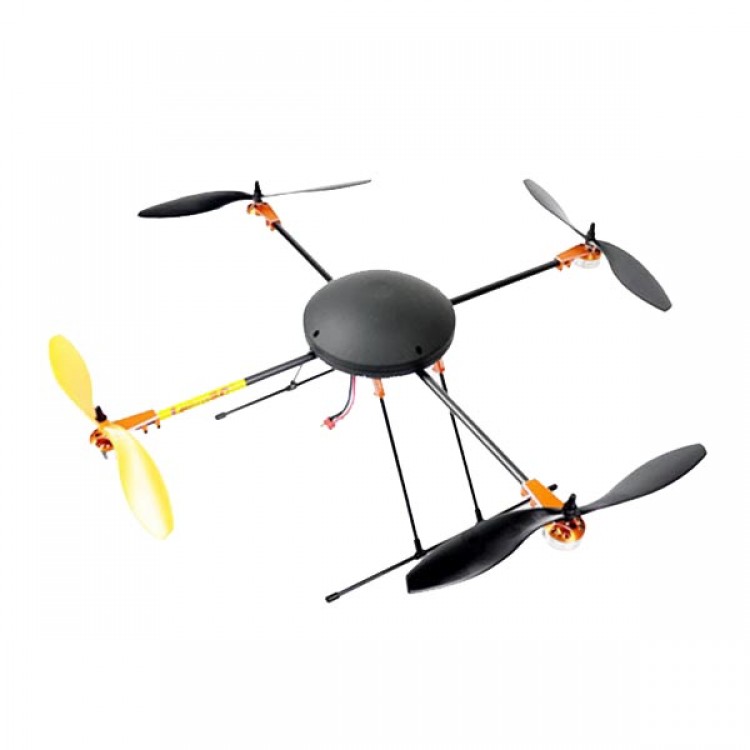

LOTUSRC T580P FPV Quadcopter ARTF Aircraft (Half Assembled) PNP Multi/quad Copter Easy to Assembly

Function and features
- T580p quad-copter is a mid-level model product in DIY-type aircraft, designed for flight photography players.
- High efficiency: with 12inch slow fly propellers, disc brushless motor, optimal efficiency can reach 12g/W.
- Stability: take high-performance MEMS sensor for 6DOF stabilization with low drift, shock resistance ability.
- Simple: only require 4channel to fly. Property core system, it is compatible to near all RC equipments.
- Easy to use: can be installed quickly, easy to operate, and support self-stabilizing PTZ function.
- T580P can take off and land vertically, spot hover, altitude hold, fly left, right, etc.
- On the bottom of this aircraft, we can install a camera mount. It takes suspension system between PTZ (camera mount) and ARF, and can filter high and low frequency vibration. Camera mount swings on the cross beam of LG, can be installed and dismantled quickly.


No.

Name

Specification

Quantity

Unit

1

Cover

ABS composite material

1

Set

2

Arm beam

Carbon fiber/glass fiber

4

Pcs

3

Landing gear

Glass fiber/rubber/high-strength aluminum

1

Set

4

Motors

C2806 KV600
Out runner brushless motor

4

Pcs

5

Propeller

1260、1260R
Plastic composite

4

Pcs

6

Camera mount

Carbon fiber/carbon fiber balance

1

set

7

PTZ hanging bracket

Flexible damper

1

Set

8

PTZ steering engine

Metal high-speed digital steering engine

2

Pcs

9

Brushless motor

2-3S 18A high-speed ESC

4

Pair

10

FC system

Inertial attitude self-stable system

1

set



















  1.
  2.
  3.
  4.
  5.
  6.
  7.
  8.
  9.
  10.
  11.
  12.
  13.
  14.
  15.
  16.
  17.

Technical parameters

Aircraft dimension

608 × 608 × 243

Mm

Maximum expandable size

885 × 885 × 243

Mm

Motor to motor

Diagonal distance between two motor centers

580mm

Propeller

1260frontal and versa props

12inch

Battery

LiPo 3S 2200mAh 20C

Standard 1p

Aircraft weight(kit only)

Without battery, receiver, applicable payload

730gram

Take-off weight

3S 2200mAh 1P battery, receiver, camera mount

950gram

Recommended payload

Card-type camera

≤230gram

Maximum pull

1P standard battery

2400gram

maximum payload

1P standard battery

≤580gram

Maximum take-off weight

1P standard battery

1800gram

Flight distance

Visual area

-

Flight time

3S 2200mAh 1P battery, receiver

12mins

Wind resistance

≤4

Class
