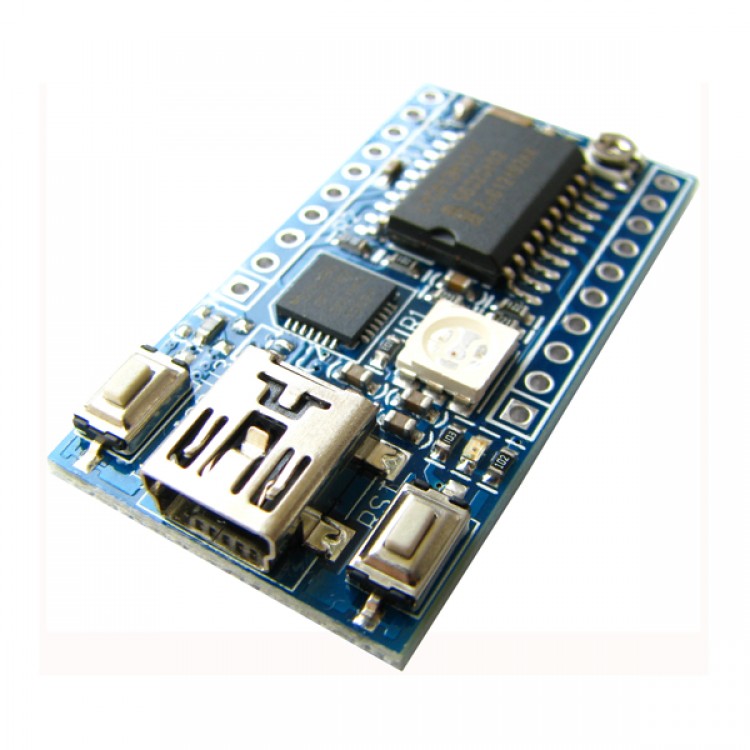

LPC812 Development Board CortexM0+ Mini System USB to Serial Port Support ISP Download

ARM Cortex-M0+ processor
 - running at frequencies of up to 30 MHz
 - Nested Vectored Interrupt Controller (NVIC)
 - System tick timer.
 - Serial Wire Debug (SWD) and JTAG boundary scan modes supported
 - Micro Trace Buffer (MTB) supported.

Memory:
 - Up to 16 kB on-chip flash (ISP and IAP via on-chip bootloader software)
 - Up to 4 kB SRAM
 - ROM API support: Boot loader, USART drivers, I2C drivers, Power profiles

Digital peripherals:
 - High-speed GPIO interface with up to 18 General-Purpose I/O (GPIO) pins
 - GPIO interrupt generation capability
 - Switch matrix for flexible configuration of each I/O pin function
 - State Configurable Timer (SCT)
 - Multiple-channel multi-rate timer (MRT)
 - Self Wake-up Timer (WKT)
 - CRC engine.
 - Windowed Watchdog timer (WWDT)

Analog peripherals:
 - Comparator with external voltage reference

Serial interfaces:
 - 3 USART interfaces
 - 2 SPI controllers
 - I2C-bus interface

Clock generation:
 - 12 MHz internal RC Oscillator (IRC)
 - Crystal Oscillator (SysOsc) with operating range of 1 MHz to 25 MHz
 - Programmable watchdog oscillator with a frequency range of 9.4 kHz to 2.3 MHz
 - 10 kHz low-power oscillator for the WKT
 - PLL allows CPU operation up to the maximum CPU rate
 - Clock output function with divider that can reflect various clocks

Power control:
 - Integrated PMU (Power Management Unit)
 - Reduced power modes: Sleep mode, Deep-sleep mode, Power-down mode, Deep power-down mode
 - Power-On Reset (POR)
 - Brownout detect
- Unique device serial number for identification
- Single power supply

Package list:
-  1 x LPC812 board
-  1 x mini MiniUSB cable
-  1 x data CD
