• LT-160W ITPS 8-30V Input Intelligent Automotive ITX Power Supply Output

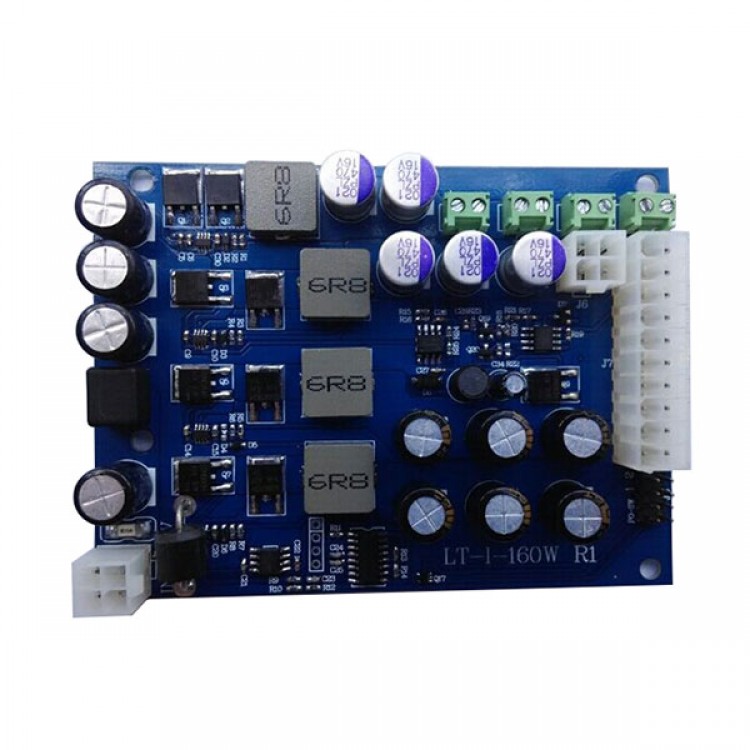

LT-160W ITPS 8-30V Input Intelligent Automotive ITX Power Supply Output

Availability: In stock, usually dispatched in 1 business day

  • Price:$42.16
  • Price in reward points: 422 Reward Points: 4
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $41.32 $40.47 $39.21 $37.52 Contact US
Quantity:

LT-160W ITPS 8-30V Input Intelligent Automotive ITX Power Supply Output

Description:

- LT-160W ITPS is mainly used for on car battery, compatible with all kinds of mainboard, can be applied to car top box, advertisment player, car monitor and so on

4.0 LW-200W ITPS Parameters:
- Min input operating voltage: 16V
- Max input operating voltage: 30V
- Input current limitation(fuse protection):15A (15A mini-blade fuse)
- Max output power: 160 Watts
- Operation temp: -40 to +85* degrees Celsius
- Storage temp: -55 to +125 degrees Celsius
- Average fault time: 180,000 hrs @ 50C, 100,000 hrs @65C
- Effect: (Input: 10~16V)    >94%, all rails combined, 50% load.
- PCB dimension: 110X83mm
- Input interface:P4 car interface
- Output interface: ITX Power 20 pin (Molex P/N 39-01-2200)

Maximum Power Characteristics
Output Rail     Current (Max)     Current Peak (<60 seconds)     Regulation
- 5V                                  8A                                 12A                                 1.5%
- 3.3V                              8A                                  12A                                 1.5%
- 5VSB                         1.5A                                   2A                                  1.5%
-   -12V                          0.15A                                 0.2A                                5-%
-     12V                          8A* (see below)                9A                                2%
When operates at 12V or at Extreme Temperature, reduce to 80W, need to add a fan

12V output current:
Input (V)     12V rail current     Input (V)     12V rail current
- 16V            4A                               24V             8A
- 17V             5A                              25V             7A
- 18V             6A                              26V             6A
- 20V             7A                              28V              5A
- 22V             8A                              30V              4A
High input voltage (26-30V), max bearing need to add a fan
