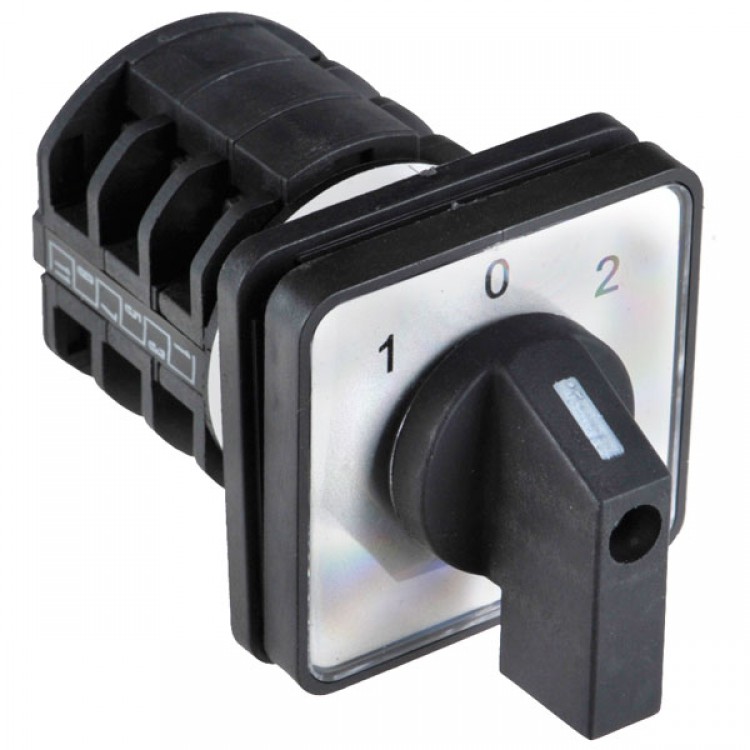

LW-10/3 D0724 Universal Changeover Switch Combined Switch Rotary Switch 10A 440V

Availability: Out Of Stock

  • Price:$7.79
  • Price in reward points: 78 Reward Points: 1
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $7.63 $7.48 $7.24 $6.93 Contact US
Quantity:

LW-10/3 D0724 Universal Changeover Switch Combined Switch Rotary Switch 10A 440V
Specfication:
- Standard:IEC/EN 60947-5-1
- Ui:440V
- Ith:10A
- Frequency:50/60Hz
- Mechanical life:300000 times
- Electrical life:100000 times
- Poles:3P,3P+N,3P+N+E,6P
- Certificate:ISO9001:2000, ISO14001:1996,CE
- keywords:universal rotary switch, change over switch
introduction:
LW8 series universal changeover switch is mainly used in the system of AC50Hz,rated voltage up to 380V, DC 220V and below to transfer the control wires and measuring meters,also directly control three phases squirral-cage asynchronous motor with capacity of 5.5KW and below.
- Standard complied:GB14048.5
- 3C certificate NO.:2003010305032671
Classification
- according to usage: master control and motor control.
- according to operating mode: positioned type and self-restore type.
- according to nos of contacts: master control used switch has 1-10pairs,self-restore type has 1-3 pairs.
- Motor directly controlled switch, positioned type has 2,3 or 4 pairs.

Type

LW8-10

LW8-20

Usage kind

AC-15

DC-13

AC-3

AC-15

DC-13

AC-3

Rated insulation voltage Ui (V)

500

Rated thermal current Lth (A)

10

20

Rated working current Ue(V)

380

220

220

380

380

220

220

380

Rated working current Le(A)

0.95

1.6

5

0.14

2.6

4.6

0.27

12

Mechanical life(times)

30×104

Electrical life(times)

10×104

5×104

10×104

5×104

Operation frequency(times/h)

120
