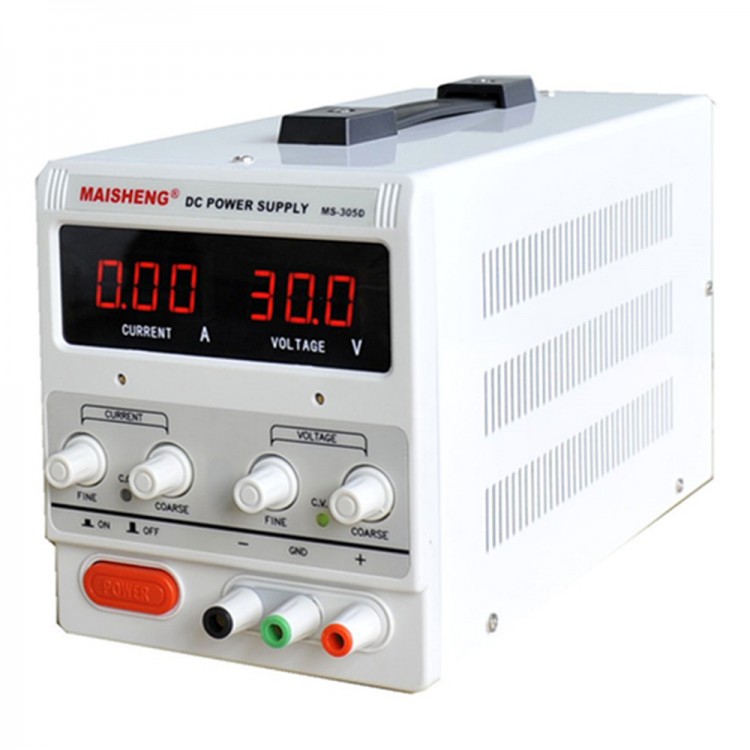

Maisen 30V 3A Switching Regulated Adjustable DC Power Supply Voltage Stabilizer Regulator with Output Cable

Maisen 30V 3A Switching Regulated Adjustable DC Power Supply Voltage Stabilizer Regulator with Output Cable

Specification:
- Current display
- Voltage display
- Thick steel plate box
- Smart fan
- 110V/220V switch
- Fuse tube
- AC voltage input

Features:
- Thick steel chassis, beautiful and generous, strong and durable. The handle design, convenient handling.
- The voltage and current are used in coarse and fine design, accurate adjustment of the output voltage and current values.
- Constant voltage, constant current automatic conversion, can be used as a constant pressure source, can also be used as a constant current source.
- Protection function: over voltage protection (OVP), short circuit protection (OCP), over temperature protection (OTP).
- Line design is reasonable, can be used for 24 hours full load.
- PWM switch pre regulator, MOS linear adjustment mode, high efficiency, energy saving and environmental protection, performance is close to linear power supply
- Intelligent temperature control fan, adjust the speed according to the load situation, effectively reduce the noise, prolong the life of the fan.

Parameters:
- Input voltage: 220V 50Hz
- Output voltage: DC0-30V adjustable
- Ouput current: DC3A adjustable
- Resolution: 0.1V 0.1A
- Accuracy: -+1% -+1byte
- Voltage stability : <=0.05%+1mV
- Current stability : <=0.1% +10mA
- Load stability: CV<=0.1% +1mV CC<=0.1% +10mA
- Wave and noise:  CV<=10mA (RMS) CC<= 20mA(RMS)
- Operating tem.: -10~40deg C humidity :<80%
- Storage tem.: -20~80deg C humidity :<80%
- Size:260*125*155mm

Package included:
- 1 x Power Supply
