Makeblock DC 3.5V-5.5V RJ25 Interface Temperature Sensor Waterproof High-Precision for Arduino IDE MBlock

Description:

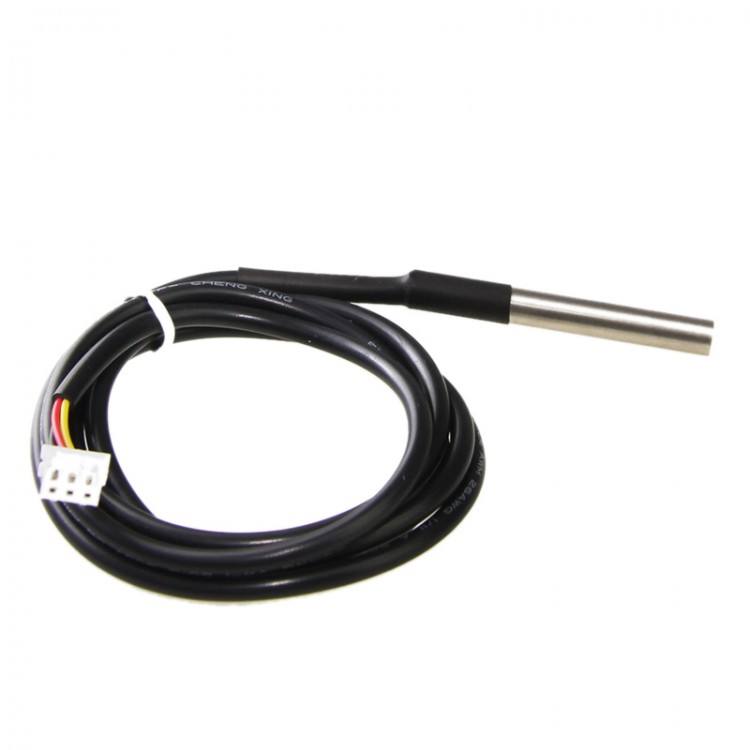

Me Temperature is a metal thermometer with detector DS18B20. This module needs to be connected to the master board interface where marked blue.

RJ 25 interface:
If want to connect the thermometer to RJ25 interface, please connect to Me RJ25 Adapter master board(Meduino+Base Shield/ Me Baseboard. Makeblock Orion,etc.) where is the blue or yellow interface.

Pin interface:
- GND:  Ground wire
- VCC: Power cord
- SIG: Temperature signal output (Output voltage: 0.2V-3V)
- According to 3pin interface, you can control this module with other control board.
- SIG-pin needs to connect to DIGITAL pin

Feature:
- Support Arduino IDE and MBlock
- Compatible with Me RJ25 Adapter

Parameter:
- Operating voltage: DC 3.0V-5.5V
- Measuring range: -55-125 degree ceisius
- Interface: Red-power supply; yellow-data; black-ground wire
- Size: metal:6 x 25mm; cable: 50cm

Package included:
- 1 x Temperature Sensor
