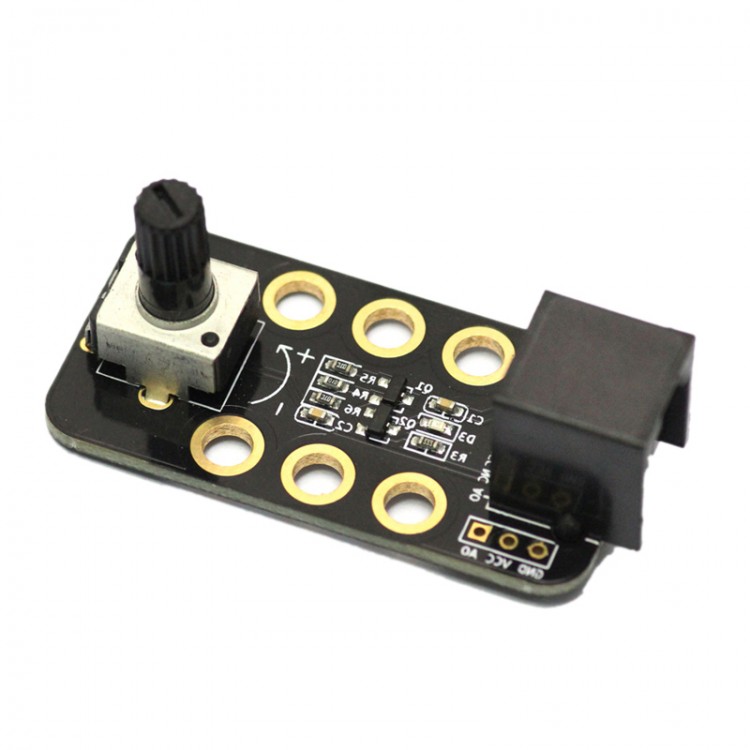

Makeblock Me RJ25 Potentiometer Module 270 Degree Rotating Angle Electronic Module with Indicator Light
Description:
Me Potentiometer Module contains a Potentiometer that the maximum resistance is 10K, You can use it to adjust the speed of the motor,the brightness of the LED. This module needs to be connected to the master board interface where marked black .
RJ 25 interface:
When using the RJ 25 interface, please connect to Makeblock master control board where the interface noted as yellow.
Pin interface:
- GND: Ground wire
- VCC: Power cord
- AO: Analog output (Output voltage: 0.2V-3V)
Feature:
- Support Arduino IDE and MBlock
- RJ25 interface
- Compatible with Lego product
- DIY interface, support most of the Ardunio master control board
Parameter:
- Operating voltage: DC 5V
- Signal type: Analog signal (0V-4.8V)
- Size: 52mm x 24mm x 22mm
Package included:
- 1 x Makeblock Me RJ25 Potentiometer Module
