MarsBoard AM3358 Cortex-A8 Development Board with OLED AD DA Module for Arduino
More information: Click here
Main part:
- MarsBoard AM335X ( including CM-AM335X core board and SIM-AM335X baseboard)
- AM335X Adapter for Arduino (MarsBoard AM335X to compatible with Arduino adapter)
- Accessory Shield (0.96" OLED,real time clock, three axis accelerometer and temperature sensor, etc.)
- Analog Test Shield (AD collection and DA output test)

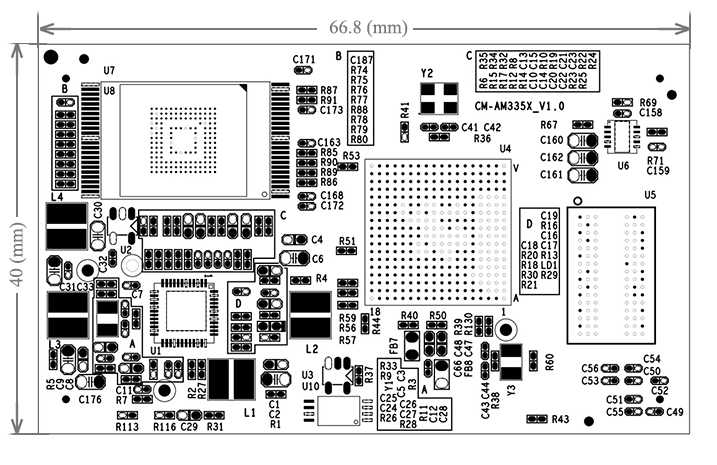

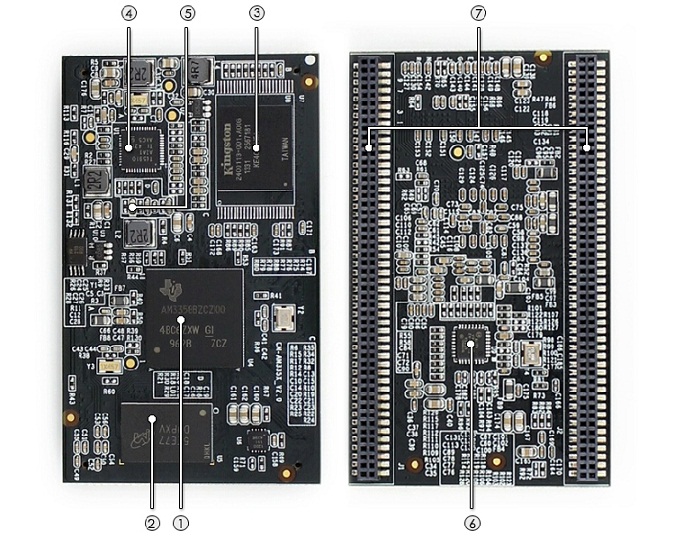

CM-AM335X:
- CM-AM335X is based on AM335X processor
- AM335x processor (1GHz Cortex-A8 kernel)
- 512MB DDR3 memory
- 4GB eMMC memory
- LAN8710A Ethernet PHY
- Power TPS65910 management chip
- 2* 2x50PIN output interfaces

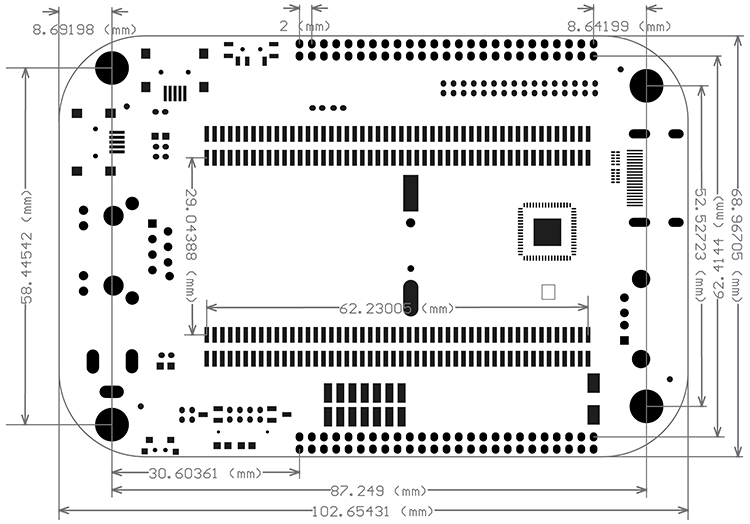

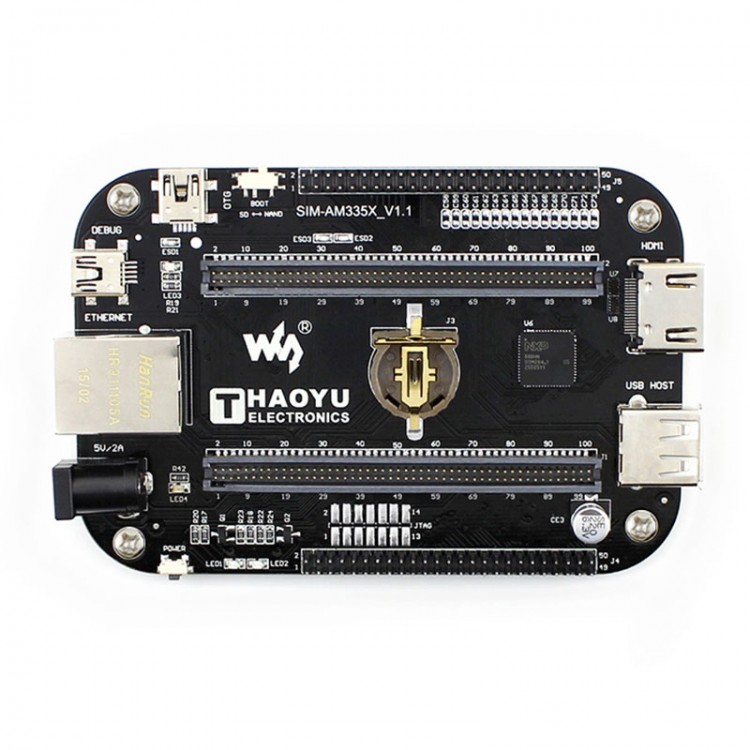

SIM-AM335X hardware parameters:
- Onboard elements: TDA19988 HDMI transmitter ,CP2102 USB TO UART chip
- Interface: HDMI, 10/100M Ethernet, TF card seat, USB-DEBUG, USB-OTG, USB-HOST

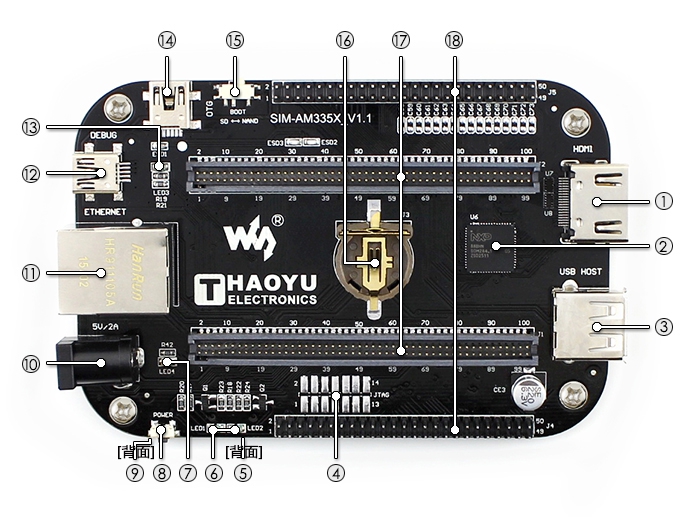

Interfaces:
1. HDMI A model interface 5V 2A power interface
2. TDA19988 HDMI convert chip 10M/100M Ethernet INTERFACE
3. USB HOST interface USB debugging interface
4. JTAG interface USB debugging indicator light
5. TF card seat (back) USB OTG interface
6. User LED Start selection key
7. Power indicator light Battery set
8. POWER key CM-AM335X core board interface
9. RESET key (back) Expansion interface
AM335X:
- Integrated with 1GHz ARM Cortex-A8 core
- With NEON SIMD Coprocessor
- With SGX530 Graphics engine
- 32KB Instruction cache and 32KB data cache
- Integrated with 256KB two level cache
Other elements:
- 512MB DDR3 SDRAM store
- 4Gb eMMC Flash storage
- TDS65910 power management chip
- Power LED
- LAN8710A 10M/100M Ethernet PHY
- Expansion interface 2*2x50 pin 1.27mm gap
Package Contents:
- CM-AM335X x1
- SIM-AM335X x1
- AM335X Adapter for Arduino x1
- Accessory Shield x 1
- Analog Test Shield x 1
- Micro SD Card 16GB x 1
- Power supply x1
- USB cable x1
