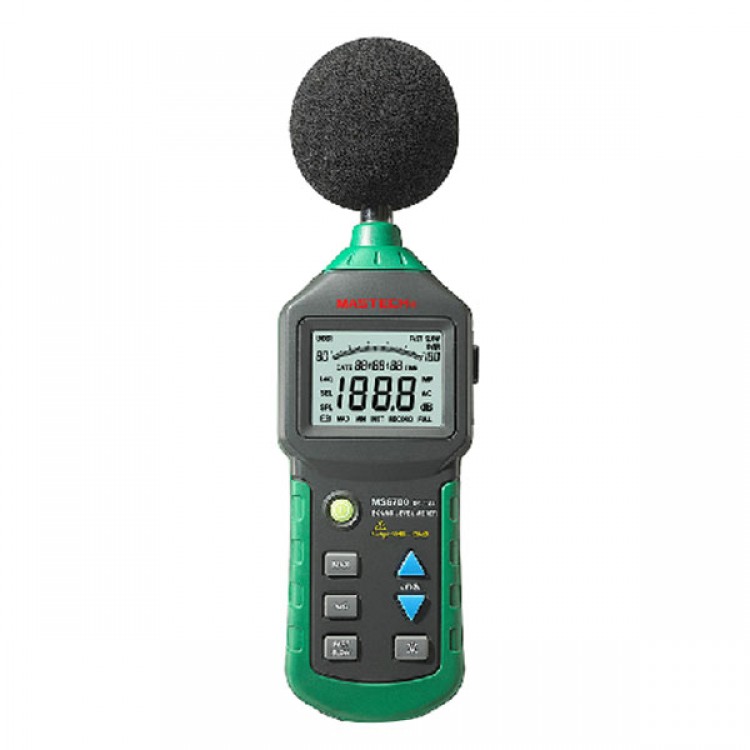

MASTECH Auto Range MS6700 Digital Sound Level Meter Decibel Noise Meter 30dB to 130dB With Clock and Calendar Function

MASTECH Auto Range MS6700 Digital Sound Level Meter Decibel Noise Meter 30dB to 130dB With Clock and Calendar Function

Features:
1.The meter has been designed according to the IEC651 Type 2, ANSI S1.4 Type 2.
2.Measurement range is from 30dB to 130dB and automatic ranging.
3.With two equivalent weighted sound pressure levels, A and C.
4.Corresponsive rate select: FAST/SLOW
5.Maximum value locked.
6.Clock and calendar function.
7.AC and DC analog signals output, which can be linked to frequency analyzer or X-Y axis recorder.
8.Background light for working in the night. to save power, the background light shines for 5 seconds, then closes automatically.
9.Secondary plasticizing meter shell.
10.Good circuit designed to save power, the battery can be used for a long time.

Specifications:
Accuracy:±1.5dB
Response frequency: 31.5Hz-8kHz
Dynamic range: 50dB
Frequency weighting: A/C
Time weighting: FAST 125ms, SLOW 1sec
Microphone:Electret Condenser microphone
Digital display: 4 digitals, resolution 0.1dB, sampling rate 2 times/s
Analog bar display: Each analog bar is as 1dB, sampling rate 20 times/s
Measurement ranges: six ranges: 30-80dB/40-90dB/50-100dB/60-110dB/70-120dB/80-130dB
Auto-range: Micro-computer can choose the best measurement ranges
Over range indicator: UNDER(less than range) and OVER (over range )
AC signal output: 0.707 Vrms at FS (Auto-range mode isn't included), Output impedance: approx.600ohm
DC signal output: 10mV/dB, Output impedance approx.100ohm
Power supply: 4*LR03 AM4 1.5V AAA alkaline cells (not included)
AC adapter: Voltage 9vDC
                    Voltage ripple <100mVpp
                    Supply Current >100mADC
                    Socket pin     Ground
                    Casing        positive
                    External Diameter 3.5mm
Operating temperature: 0 to +40 ° C
Operating humidity: 10 to 80%RH
Storage temperature: -10 to +60 ° C
Storage humidtiy: 10 to 70%RH
Dimension: 245*80*35mm (L*W*H)

Package includes:
1 * MS6700 Sound Level Meter
1 * Earphone plug
1 * Operation manual
1 * Windscreen
