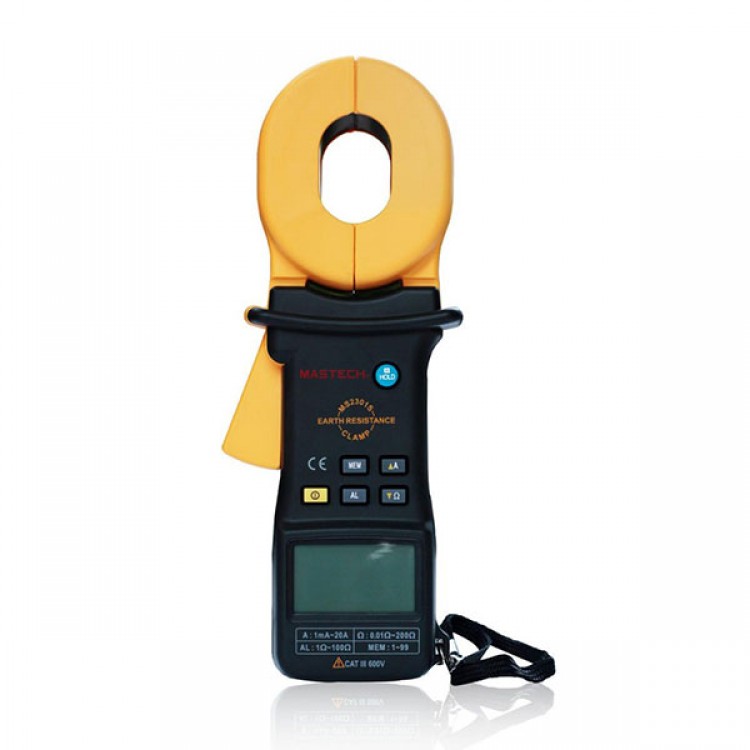

MASTECH MS2301S Clamp Ground Resistance Tester / grounding resistance tester / megger

MASTECH MS2301S Clamp Ground Resistance Tester / grounding resistance tester / megger

Overview:
- Because modern industrial electrical equipment has been quite popular, a good ground has become an important anti-interference, effective anti-lightning protection system. Therefore, safe, fast grounding measurement has become an urgent need. Clamp Earth Resistance Tester is a major breakthrough in traditional grounding resistance measurement without the use of auxiliary ground rods measuring, and need not interrupt the grounding device under test, simply grounding wire or rod clamp to live, you can safely and quickly measure resistance to ground.
In addition, the product can also make current measurements, the sensitivity of the clamp can measure the leakage current to 1mA, while the neutral current up to 20A RMS. This function is to be measured in ground loops when containing a large affect power quality and harmonic noise, it is particularly important.
In addition to the products used in industrial electrical equipment, also in power distribution, telecommunications, system configuration, construction and other fields have a wide range of applications ground.

Applications
- MS2301 Clamp Earth Resistance Tester is used to measure any loop system grounding resistance,
- For example, the grounding resistance grounding resistance power transmission lines and communication lines, electricity can also be measured
- Equipment and lightning protection grounding resistance of grounding network. When a current ground loop interference,
- Resistance measurement accuracy will be affected, then the available instrument for measuring ground resistance interference currents
The amount.

Features:
- Precision measurement of low resistance 0.01Ω
- 0.001Ω high resolution
- 99 sets of data can be stored resistance measurement
- Alarms can be set to a value within the range 1Ω-100Ω
- Measure leakage current and neutral current
- Large diameter 45 × 32mm precision measuring probes, oval-shaped jaw, measurable flat iron grounded.
- Digital measurement, automatic transmission, easy to operate
- Clamp head with double insulation protection, enhanced anti-jamming
- Non-contact measurement, the measurement safety
- Single measurement time of 1 second, reflecting the rapid measurement
- Limit alarm with battery
- The display: LCD 3 3/4 digits
- Clamp head diameter: 32mm X 45mm
- Current overload Show: greater than 20A RMS, "OL" is displayed

Technical parameters:
- Technical data / range / accuracy / resolution
- Resistance measurement: 0.01Ω ~ 0.999Ω / ± (1.5% + 0.01Ω) / 0.001Ω
                  1Ω ~ 9.99Ω / ± (1.5% + 0.3Ω) / 0.01Ω
                  10Ω ~ 99.9Ω / ± (3.0% + 0.3Ω) / 0.1Ω
                  100Ω ~ 199.9Ω ± (5.0% + 3Ω) / 1Ω
- Current measurement: 100mA / ± (3.5% + 1mA)
                  300mA / ± (3.5% + 2mA)
                  1A / ± (3.5% + 0.003A)
                  3A / ± (3.5% + 0.01A)
                  10A / ± (3.5% + 0.03A)
                 20A / ± (3.5% + 0.05A)

Feature
- Auto range: Yes
- Jaw opening: 45mm × 32mm/1.8 "× 1.3"
- Data storage: 99 groups
- Alarm settings: Setting alarm threshold in 1Ωto 100Ω
- Low Battery Indicator: Low Battery Display
- Data Retention: Yes
- Test conditions: temperature 23 C ± 3 C
                  Humidity 50% RH ± 10%
- Battery power supply:> 7V
- External magnetic field: <40A / m
- External electric field: <1A / m
- Current Test Frequency: 45Hz ~ 65HZ

Fitting
- Battery * 1
- 5Ω resistor ring * 1
- Test report * 1
- Manual * 1
- Cleaning cloth * 1
- Hard Aluminum * 1
