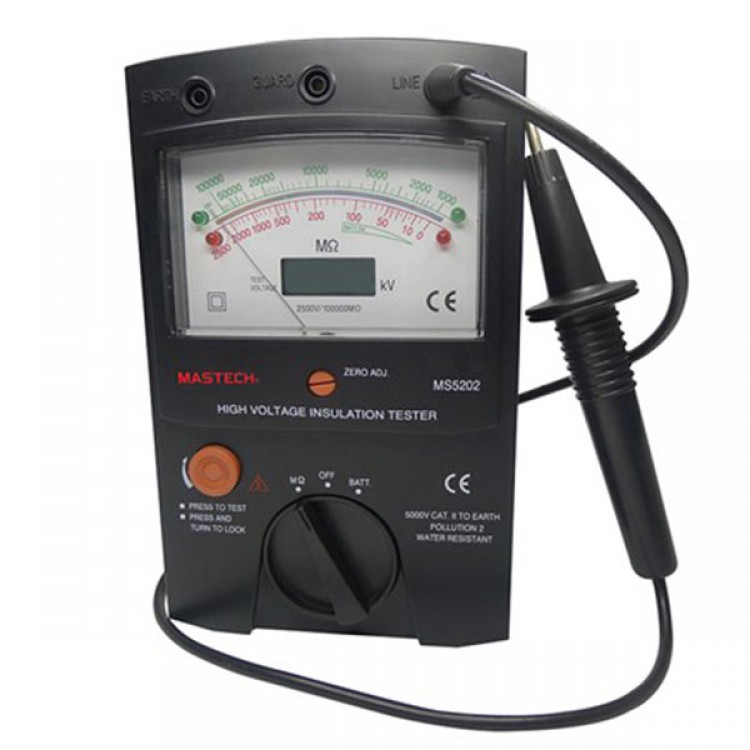

• MASTECH MS5202 2500V Digital/Analogue Megger Pointer Insulation Resistance Tester Max to 100000Mohm

MASTECH MS5202 2500V Digital/Analogue Megger Pointer Insulation Resistance Tester Max to 100000Mohm

Availability: In stock, usually dispatched in 1 business day

  • Price:$117.88
  • Price in reward points: 1179 Reward Points: 12
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $115.52 $113.16 $109.63 $104.91 Contact US
Quantity:

MASTECH MS5202 2500V Digital/Analogue Megger Pointer Insulation Resistance Tester Max to 100000Mohm

Features:

Dual measuring switch to avoid incorrect operation
Test insulation up to 100000Mohms at 2500V
Low battery indication
Inner battery test function is provided
Design according to the IEC1010-1 Standard CAT.II 5000V

Specifications:
Output voltage: DC 2500V±10%
Measuring range: 0 to 100M ohms, ±3% of arc; 100M ohms to 50000M ohms, ±2.5% of arc; 50000M ohms to 100000M ohms, ±3% of arc
Test voltage display: LCD
Measuring method: Dual-slope integration A/D converter
Sampling time: Approx.0.4 second
Power supply: 8*1.5V AA battery or 1*9V (6F22, 1604) battery (not included)
Power consumption: Approx.140mA (12V), Approx.2mA (9V)
Operating temperature: 0 to 40 Centigrade (32 to 104 Fahrenheit)
Operating humidity: =<85% R.H
Storage temperature: -10 to 50 Centigrade (10 to 122 Fahrenheit)
Dimension: 225*138*81mm

Package includes:
1 * MS5202 Insulation Tester
1 * Test line
1 * Test clips
1 * User manual
