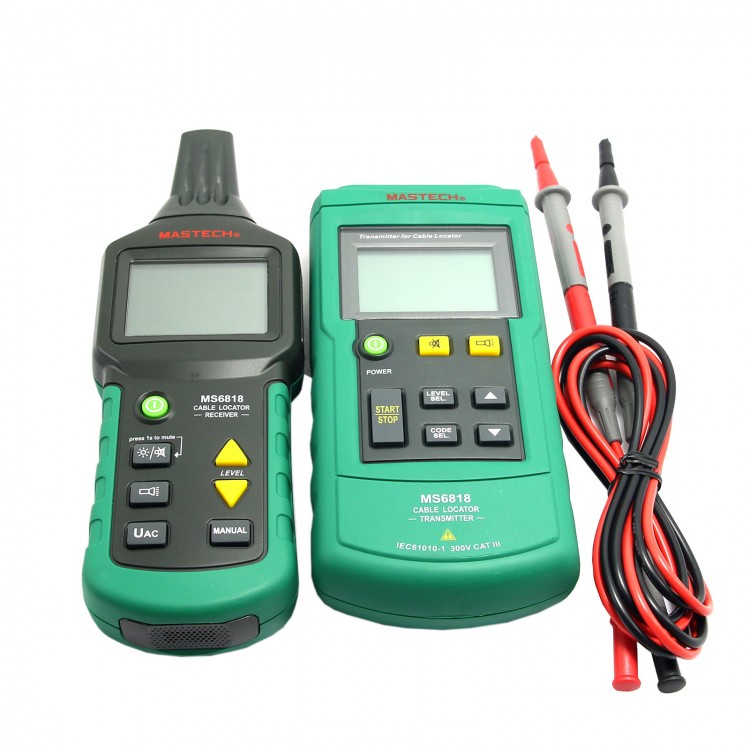

MASTECH MS6818 Wire Cable Metal Pipe Locator Detector Tester Meter

Availability: In stock, usually dispatched in 1 business day

  • Price:$161.90
  • Price in reward points: 1619 Reward Points: 16
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $158.66 $155.42 $150.57 $144.09 Contact US
Quantity:
Features:

- Find the open or shorts of cables in the wall or earth
- Track cables in the wall or earth
- Find the fuse and safeguard
- Find the open or shorts of conduit under the floor
- Track the conduit made by metal in the project of ware or hot
- Sensitivity of receiver can be selected
- Flashlight function

Specification:

Conformance to IEC61010-1 CAT III 600V
Display 1999 Counts
Diode Check
Continuity Check
Auto/Manual range
Data Hold
Max value Measurement
Back light
Telephone Check Identify the state for the working telephone line: Busy, Ringing or Clear
Tone Judge continuity of the cables or wires.
  Track the cables or wires, and diagnose the break point.
NetCable Check Test for open circuits, Shorts, miswires, reversals, split pairs and LCD display the test results.
  SHIELD detection tests a cable's shield integrity.
  Main unit and one remote allow one person testing of T568A, T568B, 10Base-T.
  Easy to read fault display and high speed testing.
  Debug mode for detailed fault identification result.
Low Battery Indication
Auto Power Off
None Contact Voltage Detect
Power Supply 9V(6F22)
Dimension 186(L) x 88(W) x 55(H)mm
Weight Appro.400g


Function:
  Range Accuracy
DC Voltage 200mV/2V/20V/200V/600V 0.7%rdg+3dgt
AC Voltage 200mV/2V/20V/200V/600V 0.8%rdg+5dgt
DC Current 200uA/2000uA/20mA/200mA 1.2%rdg+5dgt
  2A/10A     2.0%rdg+5dgt
AC Current 200uA/2000uA/20mA/200mA 1.5%rdg+5dgt
  2A/10A     3.0%rdg+5dgt
Resistance 200Ω/2k/20k/200k/2M/20M 1.0%rdg+3dgt
