MASTECH MS7222 Platinum Resistance Calibrator Calibrator Source
Features
Free Shipping Newly arrived MASTECH MS7222 THERMOCOUPLE CALIBRATOR Meter Tester

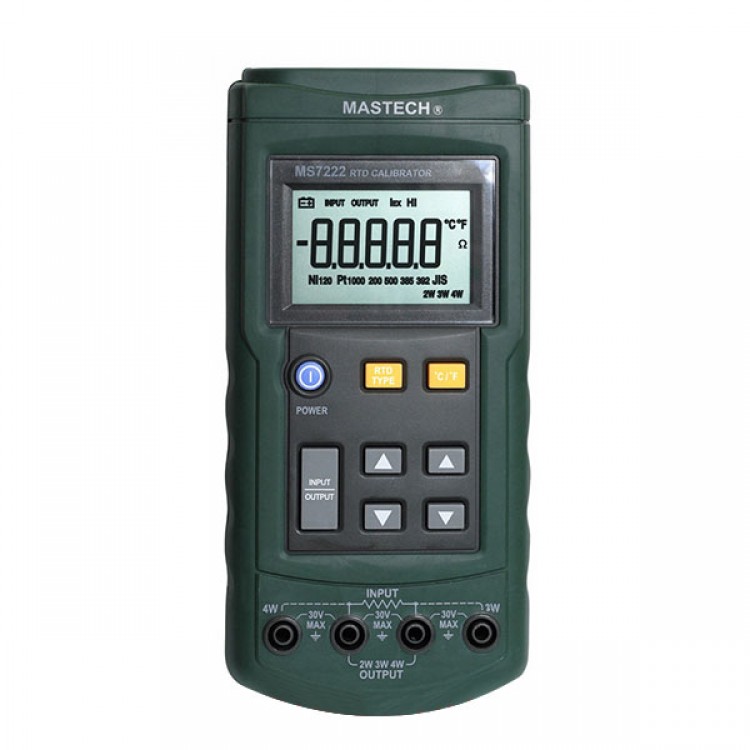

MS7222 RTD Calibrator is tool for calibrating RTD (Resistance Temperature Detector) transmitters,
including the most pulsed transmitters. It simulates and measures seven different types of RTDs in units
of °C or °F and resistance in units of ohms. It can not be source and measurement tool simultaneously
Measure temperature from RTD output
Simulate RTD output
Operable with seven types of RTD
Simulate additional RTD using Ohms output function
Selectable °F or °C
Specifications
SPECIFICATIONS
Measure / simulate RTD or Ohm
Range 0Ω to 3200Ω
Resolution 0.1Ω
Accuracy 0.1Ω to 1Ω
Pt10/Pt50/Pt100/Pt200/Pt500/Pt1000(385) Pt100(JIS)
This product does not include a battery
