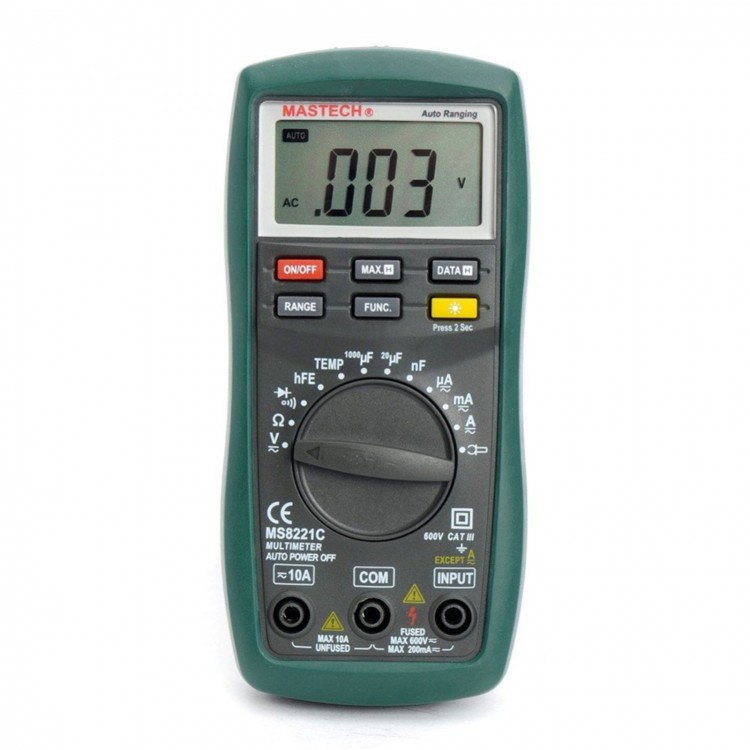

Mastech MS8221C Digital Multimeter Auto Manual Ranging DMM Temperature Capacitance hFE Test

Availability: In stock, usually dispatched in 1 business day

  • Price:$27.20
  • Price in reward points: 272 Reward Points: 3
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $26.66 $26.11 $25.30 $24.21 Contact US
Quantity:

Mastech MS8221C Digital Multimeter Auto Manual Ranging DMM Temperature Capacitance hFE Test

Description:

This meter is a portable professional measuring instrument with handsome LCD and back light easily reading. Single operation of a transform switch makes measurement convenient. Overload protection and low battery indication are provided, this meter is ideal for use in the fields, workshop, school, hobby and home applications.

Features:
Compliance with international safety standards IEC1010-1 CAT ΙΙΙ 600V.
Auto range and Manual range
Second injection
Data hold and maximum value hold
Back Light
Auto power off

Specification:
Display: 1999 counts, digit height 16mm
DC Voltage: 200mV/2V/20V/200V/600V± (0.7% of rdg + 2 digits)
AC Voltage: 200mV/2V/20V/200V±(0.8% of rdg + 3 digits),  600V±(1.0% of rdg + 3 digits)
DC Current: 200uA/2000uA/20mA/200mA ±(1.2% of rdg + 3 digits),  2A/10A±(2.0% of rdg + 10 digits)
AC Current: 200uA/2000uA/20mA/200mA ±(1.5% of rdg + 5 digits),  2A/10A±(3.0% of rdg + 10 digits)
DC Current (with clamp measurement, optional): 200A/2000A (0.1mV/0.1A) ± 1.2%
AC Current (with clamp measurement, optional): 200A/2000A (0.1mV/0.1A) ± 1.5%
Resistance: 200/2K/20K/200K/2MΩ ± 1.2%; 20MΩ ± 2.0%
Temperature: -20 ºC - 1000  ºC ± 3.0%, 0 ºF- 1800 ºF ± 3.0%
Capacitance measurement: 20nF/200nF/2μF/20μF/200μF/1000μF ± 4.0%
Continuity Test
Diode test
Transistor hFE Test
Power supply: 1.5V (AAA) x 3
Dimensions: 158 x 74 x 31mm

Package list:
1 X MS8221C multimeter
1 X test leads
1 X Thermocouple (K type)
1 X Multifunction test socket
