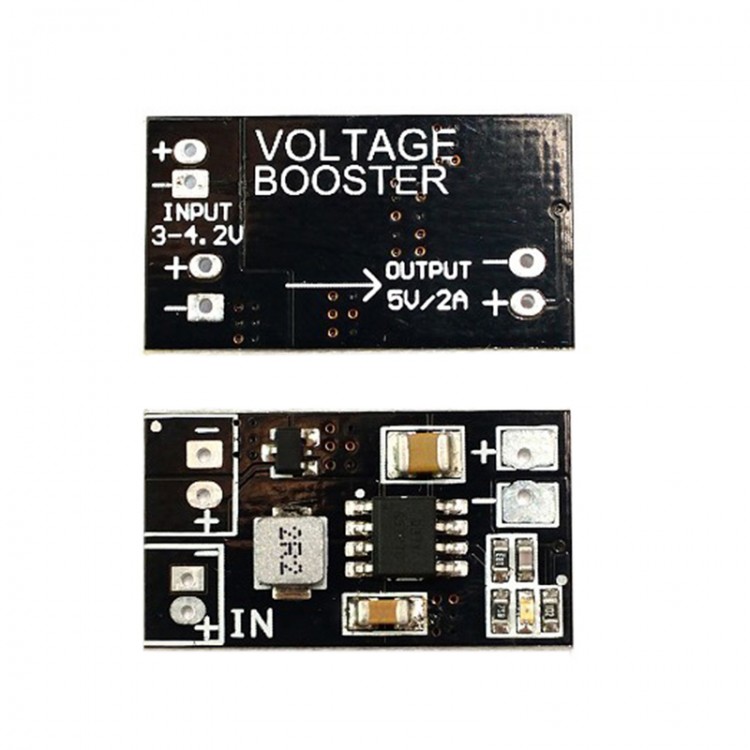

Matek DC-DC Voltage Booster 1S Lipo to 5V Synchronous Step-up Converter Output Current 2A
Features:
- Use for 1 cell Li-ion or LiPo.
- Synchronous step-up converter.
- Guaranteed 2A output current at Vout=5V from 3.3V input.
- Reverse input polarity protection.
- Over-temperature protection.
Specifications:
- Input Voltage Range: 3-4.2V DC
- Output: 5V 2A
- Standby Current: <5mA
- Pins Distance: 2.54mm
- Dimensions & Weight: 27*15*3mm, 1.5g
Note:
- For single lithium battery tp boost to 5V, can supply power to the receiver
- When input voltage is more than 4.5V, will ruin the chip
- Pay attention to the input and output polarity and insulation
- No low voltage protection, please notice the battery voltage from over charging
- When the large current outputs, the input current will be larger, and notice the step-down of the input cable and terminal
- Small volume and light weight, can be used in the model like DLG, F3P etc.
Package Included:
1x Matek VB5-15 Step-UP Voltage Module
