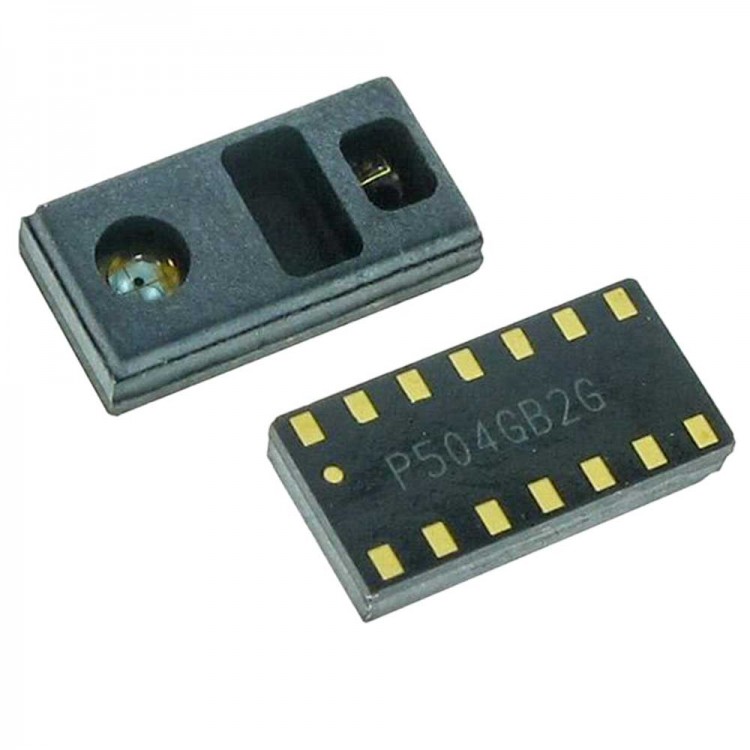

MAX30100EFD+T IC Oximeter Heartrate Sensor Transducers Integrated Optical Sensor OLGA-14 for DIY

MAX30100EFD+T IC Oximeter Heartrate Sensor Transducers Integrated Optical Sensor OLGA-14 for DIY

Specification:
- Product:ECG Sensors
- Operating supply current:600 uA
- Mounting Style :SMD / SMT
- Maximum operating temperature:+ 85deg C
- Minimum Operating Temperature :- 40deg C
- Power supply voltage:1.8 V, 3.3 V
- Package / Case :OLGA-14

Maxim 's MAX30100 pulse oximeter and heart rate sensor
Maxim 's MAX30100 pulse oximetry and heart rate sensor integrated pulse oximetry and cardiac monitor sensor . The equipment integrates two LEDs and a light detector to optimize the optical and low-noise analog signal processing to detect the pulse oximetry and heart rate signal . The MAX30100 operates in 1.8V and 3.3V power supply. They can be powered by software has negligible standby current, allowing the power to stay connected at all times . Typical applications include fitness auxiliary equipments , medical monitoring equipments , and wearable devices.

Feature:
- Complete pulse oximetry and heart rate sensor solutions
- Integrated LED, a light sensor , and high-performance analog front end
- Mini 5.6mmx2.8mmx1.2mm14 tiny needle enhanced optical system in package
- Ultra-low power operation for extended battery life , the wearable device
- Programmable sampling rate and LED current to conserve power
- Ultra-low shutdown current (0.7μA, typ)
- Advanced features improve performance test
- High signal to noise ratio provides a powerful movement Pseudoelasticity
- Integrated ambient light cancellation
- High sampling rate capability
- Fast DataOutput capability

Application:
- Fitness accessories
- Medical monitoring equipment
- Wearable device

Package included:
- 1 x Sensor
