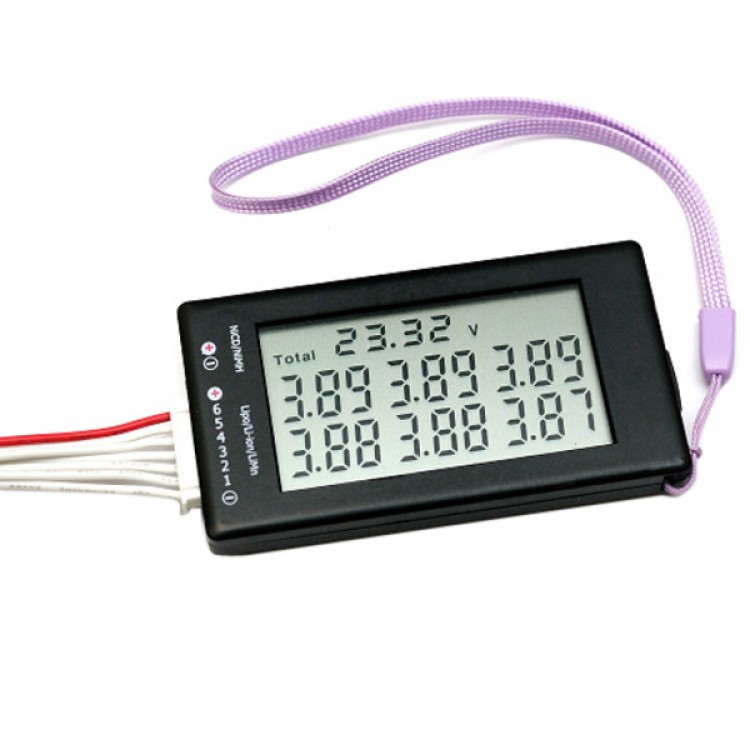

Maxpro 2-6S LCD Lithum Li-po Battery Detector LCD-6 V2
- For RC model battery diagnosis and measurement use.
- High precision display of unit cell voltage for 2 to 6s Lithium packs or 4-18 cells Nixx Packs.
- 57mm x 32mm LCD screen can display up to 6cells unit voltage & total voltage clearly & directly.
- Reverse polarity protection for cell input
- Voltage measurement range: 2~6s Lipo/Li-ion/LiMn
- Voltage display resolution: 0.01V.
- Unit voltage display range: 3.00~4.5V, Total voltage display range: 4.8~29V
- Current loading of test: <10mA
- Pin distance: 2.54mm
- Size: 81x45x10mm, Weight: 32g
- Input total voltage should be 4.8 to 27V, if the total voltage is under 4.8V, there is no display on the LCD. IF the unit voltage is above 27V, it will hurt the LCD-6.
- That is normal that the total voltage is different to the sum of each individual cell voltage in some cases for this product.
- Despite of the discrepancy between total voltage and sum of each cell voltage in some cases, this is still a very useful and convenient tool for you to quickly check the status of each cells, especially for 5S or 6S packs which have more cells, as it can display all the cell voltages on the screen at the same time, not one by one in turn.
