MC856 DC20V-80V 5.6A 2 Phase 86mm Nema34 Stepper Motor Driver for Motor Driver 57 86

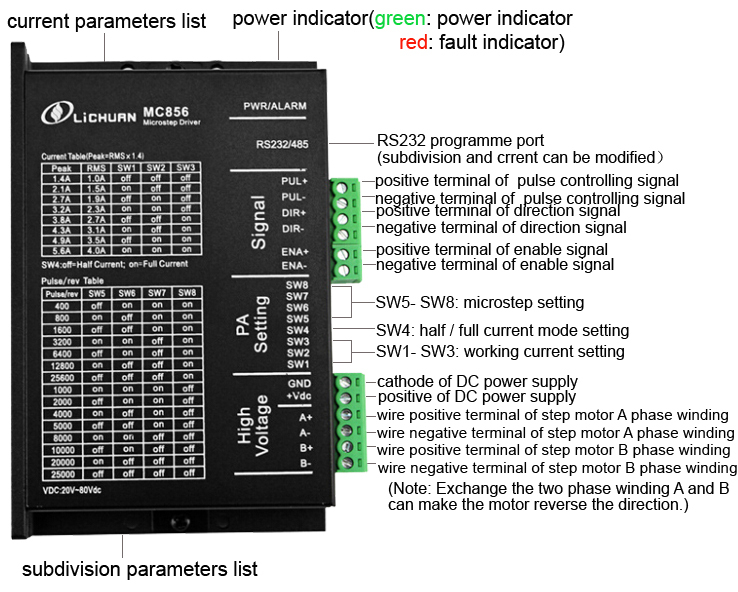

Description:

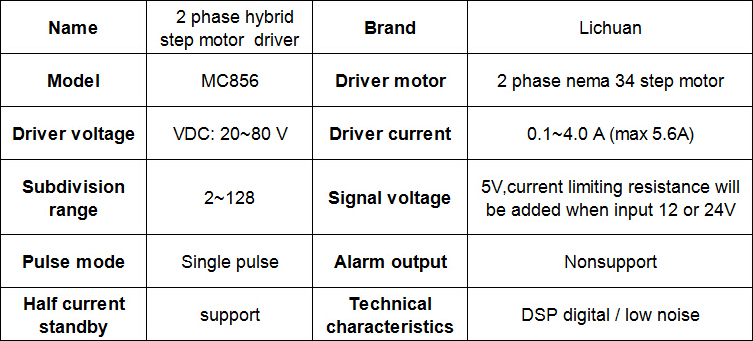

Parameters:

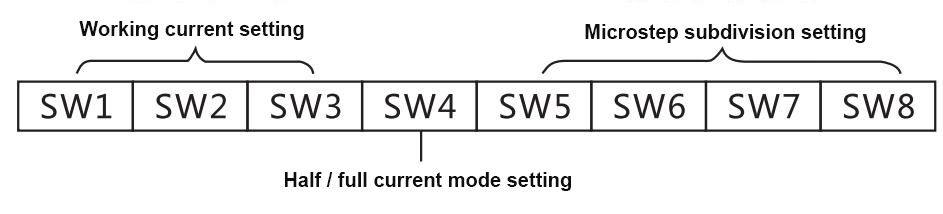

MC542 driver uses eight dip switches to set the subdivision accuracy / dynamic current and half/full current,detailed description as below:

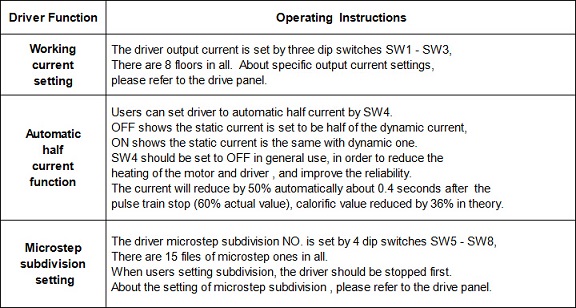

Function:
Current settings:
| Output peak current | Output average current | SW1 | SW2 | SW3 |
| 1.4A | 1.0A | off | off | off |
| 2.1A | 1.5A | on | off | off |
| 2.7A | 1.9A | off | on | off |
| 3.2A | 2.3A | on | on | off |
| 3.8A | 2.7A | off | off | on |
| 4.3A | 3.1A | on | off | on |
| 4.9A | 3.5A | off | on | on |
| 5.6A | 4.0A | on | on | on |
| Steps/roll | SW5 | SW6 | SW7 | SW7 |
| 400 | off | on | on | on |
| 800 | on | off | on | on |
| 1600 | off | off | on | on |
| 3200 | on | on | off | on |
| 6400 | off | on | off | on |
| 12800 | on | off | off | on |
| 25600 | off | off | off | on |
| 1000 | on | on | on | off |
| 2000 | off | on | on | off |
| 4000 | on | off | on | off |
| 5000 | off | off | on | off |
| 8000 | on | on | off | off |
| 10000 | off | on | off | off |
| 20000 | on | off | off | off |
| 25000 | off | off | off | off |
Package Included:
- 1 x MC856 Stepper Motor Driver
