Measuring RF Power Module RF Detector High-Frequency Detector Power Measurement 0-500MHz

Description:

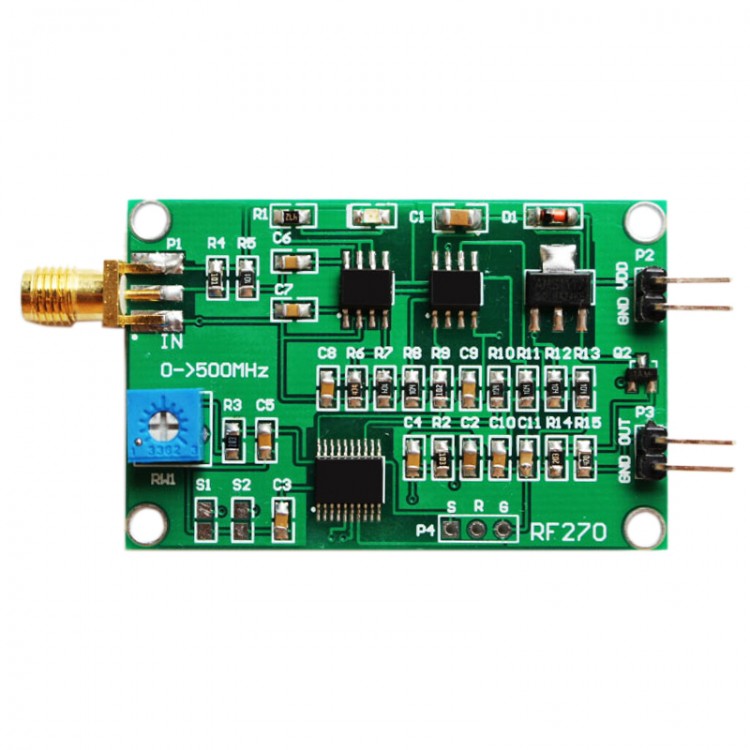

RF270 is a RF power module. Advantages: simple structure, easy to use, stable performance, reliable, high sensitivity and measurement speed and so on.

Application:
- RF power measurement
- Instrument calibration

Parameters:
1. Measuring power range -80 ~ + 10 dBm (external RF attenuator can be extended to 100dBm)
2. Measuring 0.1 dBm power resolution
3. Measurement frequency range 0 ~ 500 MHz
4. Measuring power 1nW ~ 100mW
5. Operating Voltage 7 ~ 17 VDC
6. Operating current <50 mA
7. Dimensions 52 * 34 * 10 mm length X width X height

Introduction:
- Output mode: S2 pads on the circuit board: open (output 0.00V ~ 5.00V); shorted (output 0.00V ~ 10.00V), default is open.
- Adjust potentiometer RW1 output error correction, the correction range: +/- 5dBm.

P1 Interface: RF signal input. (RP SMA KE KHD within the outer screw pin female)

P2 Interface definition:
1. VDD positive power supply module (7V ~ 17V)
2. GND negative power supply module

P3 Interface definition:
1. OUT dBm output voltage signal (0.00V ~ 5.00V / 0.00V ~ 10.00V).
2. GND power supply negative

Note: When the output is 0.00V ~ 10.00V, power supply voltage should be 15 volts.

Output (0.00V ~ 5.00V) represent the range (-80 ~ + 20dBm); resolution: 0.050V / dBm
Output (0.00V ~ 10.00V) represent the range (-80 ~ + 20dBm); resolution: 0.100V / dBm
Formula to calculate dBm output voltage (V) / resolution) = dBm.
For example: output (0.00V ~ 5.00V) output is 2.5V; 2.5 (V) /0.05) -80dBm = -30dBm.

Package included:
- 1 x Measuring RF Power Module
