MH-Z18 Min Infrared Gas Module Group CO2 Detection Sensor Module

Availability: In stock, usually dispatched in 1 business day

  • Price:$86.55
  • Price in reward points: 866 Reward Points: 9
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $84.82 $83.09 $80.49 $77.03 Contact US
Quantity:

MH-Z18 Min Infrared Gas Module Group CO2 Detection Sensor Module

Description:

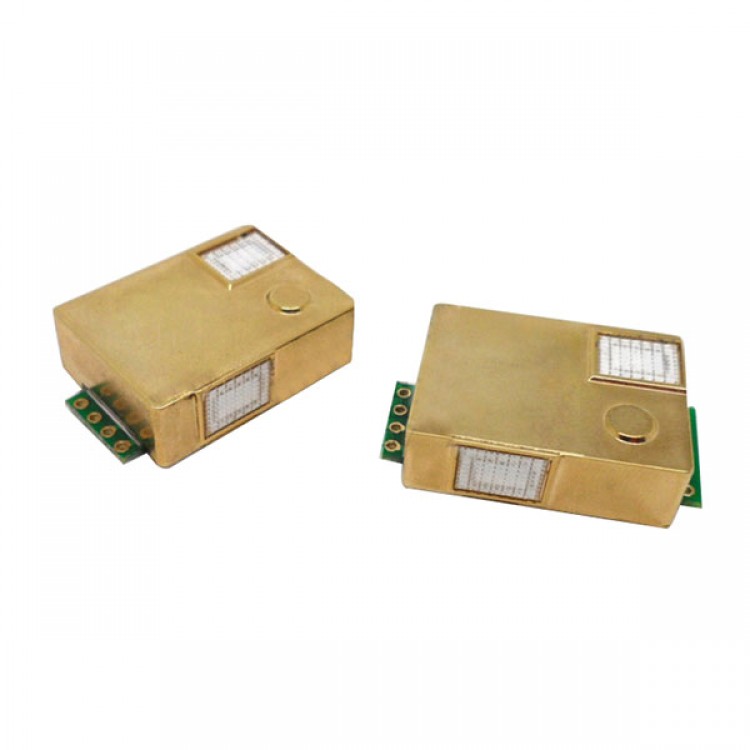

- MH-Z18 NDIR infrared gas module is a small general-purpose, small sensors, the use of non-dispersive infrared (NDIR) principle of the CO2 present in the air detect, with good selectivity, without oxygen dependence, and long life. Built-in temperature sensor, temperature compensation; also has a digital output and analog voltage output, easy to use. MH-Z18 is a mature infrared absorbing gas detection technology and precision optical design, sophisticated circuit design closely integrated to produce a universal infrared gas sensor.
Can be widely used in HVAC and indoor air quality monitoring, industrial process monitoring and security, agriculture and livestock production process monitoring.

Module features:
   High sensitivity, high resolution
   Low power consumption
   Provide UART, PWM output waveforms
   Fast response time
   Temperature compensation, excellent linear output
   Excellent stability
   Long life
   Resistance to water vapor interference
   No poisoning

Product parameters:
- Operating voltage: 4.5V ~ 5.5V DC
- Average current: 17mA (@ 5V supply)
- Interface level: 3.3V
- Measuring range: 0 ~ 0.5% VOL range of optional
- Output signal: UART / PWM
- Warm-up time: 3min
- Response time: T 90 <45s
- Operating temperature: 0 oC ~ 50 oC
- Operating Humidity: 0 ~ 95% RH
- Weight: 10g
- Life: <5 years
