MHB20-S Online Version Dual Channel Battery Discharger Capacity Resistance Tester Lead Acid Battery Tester

Availability: In stock, usually dispatched in 1 business day

  • Price:$78.82
  • Price in reward points: 788 Reward Points: 8
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $77.24 $75.67 $73.30 $70.15 Contact US
Quantity:

 MHB20-S Online Version Dual Channel Battery Discharger Capacity Resistance Tester Lead Acid Battery Tester

Parameters:

    Project                                                                Parameter
 Discharge Voltage  MHB20-S                               0.00V~20.00V
 Disharger current  MHB20-S                               0.001A~10A
 Voltage Measurement  Range                               0.00V~20.00V
 Accuracy                                      0.01V
 Error                                      ±0.5%
 Current Measurement   Range                               0.000A~9.99A
 Accuracy                                      0.001A
 Error                                      ±1%
 Battery capacity measurement  Accuracy                                     0.01AH
 Maximum display value                                     999.9AH
 Size  Host (L × W × H)                                145×96×56mm
 Aluminum power resistors  (L × W × H)                                165×60×30mm
 Product weight  Host                                       540g
 Power Resistors                                450g (one piece)



































Features:
- small size, light weight, easy to carry
- host and heating elements split design, high stability
- dual-channel detection function can detect two batteries
- 4 wire measurement, the measurement error is small, the measurement results more accurate
- Display LED lights and LED digital combination, LED light indicates the contents of the current display, - LED digital display of measured values, LED digital display resolution up to 0.01V, 0.001A
- voice prompts and the discharge end of the alarm function
- Wide range MHB20-H type, applicable battery pack: lithium polymer, lithium iron, lead acid batteries, voltage: 12V, 16V, 24V, 36V, 48V

Specification:
- MHB20-H is a compact, dual channel can detect the battery capacity, discharge time and the internal resistance of the battery tester.
It is a combination of detection and measurement of dual function of the new measuring equipment.
- MHB20-H high pressure to adapt to the voltage range of 1V ~ 60V.
- This series of instruments to adapt to different varieties of different types of batteries within its voltage range, the main measure: nickel-cadmium batteries, nickel hydrogen batteries, lithium batteries, polymer batteries, lithium iron phosphate battery, 18650, lead-acid batteries, measuring current range to 0.001A ~ 10A automatic constant current.
- MHB20-H type discharge termination voltage can be set between 0V ~ 60V. During battery discharge, the discharge can be displayed by the battery voltage, discharge current, internal resistance, discharge time, and ampere hours, etc., can be displayed after the termination of the battery discharge capacity and the discharge time of the measurement results and the like.

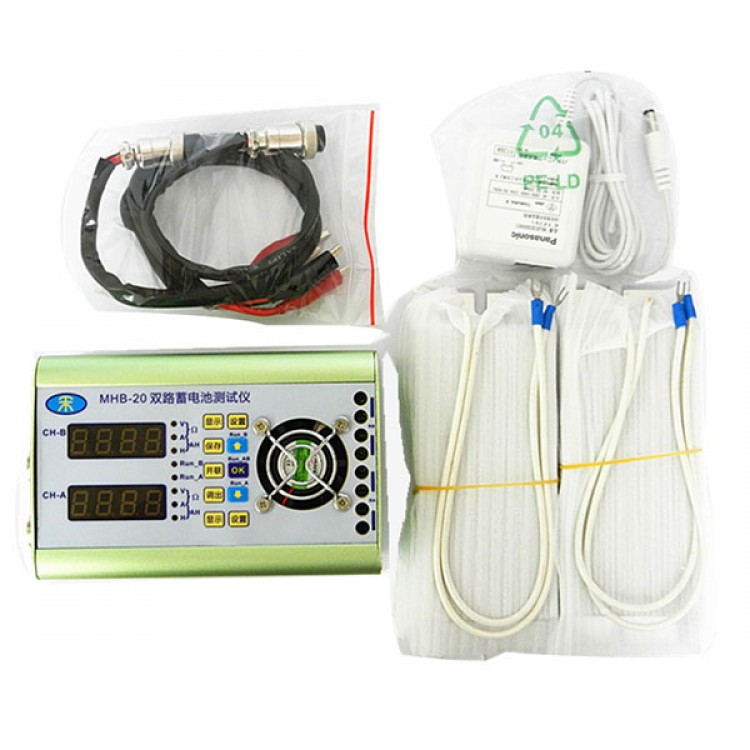

Packing List:
- Host of MHB20-H
- Power Adapter
- Alligator Clip*2
- Resistance*2
