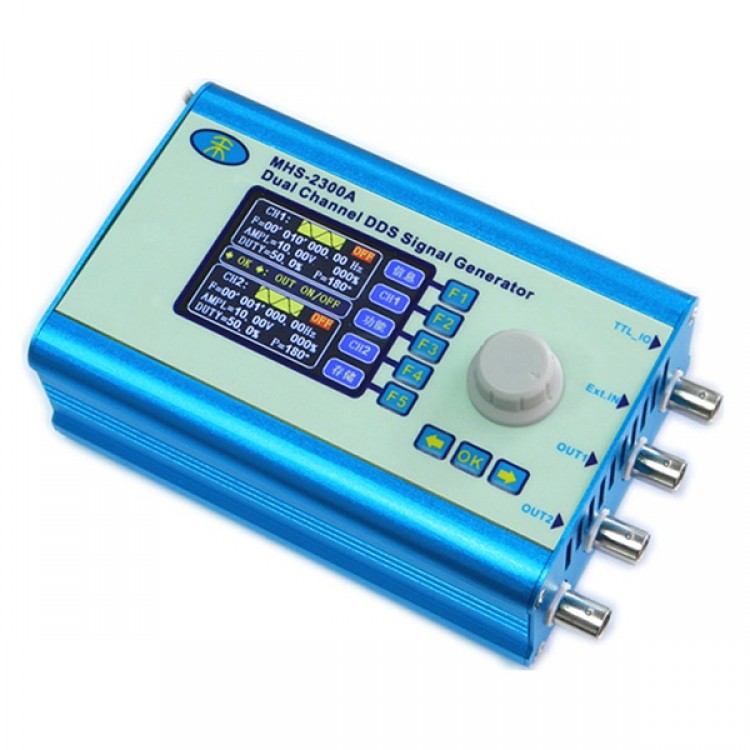

MHS2300A 5Mhz Dual Channel Digital DDS Signal Generator 5MHZ 20Vp-p 32bits ARM

Description:
- This instrument adopts CMOS integrated circuit, 32bits high speed ARM micro processor, SMT technology greatly improves its life time and anti-interference ability. 2.4inch TFT color LCD screen(320*240 resolution) could display all parameters and current button function of dual channels, effective improve its operability.

This instrument adopts CMOS integrated circuit, 32bits high speed ARM micro processor, SMT technology greatly improves its life time and anti-interference ability. 2.4inch TFT color LCD screen(320*240 resolution) could display all parameters and current button function of dual channels, effective improve its operability.

This listing is for 0-5mhz DDS generator

Features:

- DDS technology, FPGA design, low consumption
- Aluminum shell design, portable, power supply by single DC 5V power adapter
- 2.4inch TFT LCD screen
- Completely symmetry channels, could work in synchronous
- Could realize multi machines synchronous by TTL-IO port
- With sine wave, triangular wave, square wave, STW, pulse wave which duty ratio adjustable
- With 15 set user defined wave storage function, depth 1024*10bits
- Below 15Mhz, range up to 20Vp-p, if over 15Mhz, up to 15Vp-p
- Wave frequency resolution minimum 10uHz, range resolution minimum 10mV
- With -100%~+100% DC offset function
- Setting +100%, could change output as digital signal, and realize 0~10V any CMOS level
- Pulse wave duty ratio adjustment precision to 0.1%
- Under burst function, could control output 1~1048575 pulse
- With any start/terminal point frequency scan, range scan, duty ratio scan function
- With frequency measure, circules measure, positive/nagetive pulse wide measure, duty ratio measure and count function
- Completely open communication
- PC could control the machine, and editing any wave

Wave features:
- Waveforms: sine, square, triangle, pulse, TTLWave, any wave(15 waves)
- Sine wave distortion: 0.8% (20Hz ~200KHz)
- Square wave rise and fall times :<20ns

Frequency Characteristics:
- Sine wave frequency range : 10mHz~ 20MHz
- Resolution: 10uHz
- Frequency error: +/-5 × 10-6
- Frequency stability: +/-1× 10-6

Amplitude characteristics:
- Output impedance: 50ohm+/- 10%
- Amplitude range : 10mVp-p~20Vp-p(10mHz~15mHz)
- Amplitude resolution:10mVpp
- Amplitude Stability: +/-0.5%( Per5H )
- Amplitude errors: +/-1%+10mV) ( Frequency1KHz,20Vp-p)

The duty cycle of the square wave:
- Range: 0.1% to +99.9 %
- Resolution: 0.1%

Phase characteristics:
- Range: 0 ~ 359deg
- Resolution: 1deg

Sweep features:
- Sweep range: 10mHz~ 20MHz
- Scan time:1S~ 99S
- Scanning mode: linear sweep , logarithmic sweep

Frequency/Counter technical indicators :
- Frequency Range: 1Hz~ 60MHz(H.F)
- The minimum input voltage: 0.5Vp-p
- The maximum allowable input voltage: 20 Vp-p
- Count: Manual
