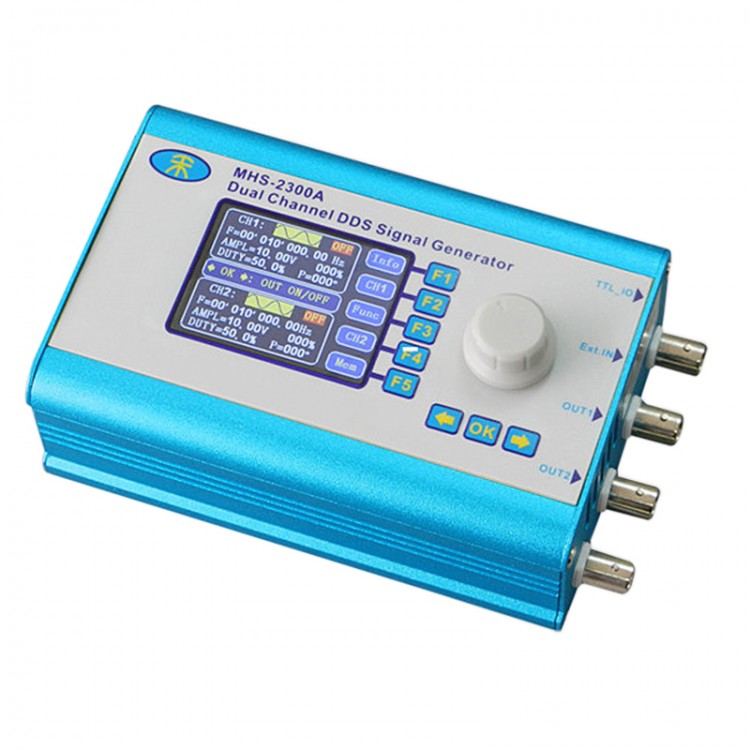

MHS2300A Series CNC Dual-Channel Arbitrary Waveform Signal Generator 2MHz

Description:
MHS2300A series instrument adopts large–scale CMOS IC,and 32-bit high-speed ARM microprocessor, which improved the instrument’s immunity and longevity greatly. 2.4 inch TFT LCD screen with 320*240 resolutions can display all the parameters of the two channels and prompt the current key functions, avoid pressing buttons repeatedly. The instrument has applications in electronic engineering labs, production  facilities,service shops, and schools.

Features:
1. Adopting direct digital synthesis (DDS) technology, FPGA design, and ultra-low power consumption;
2. With portable aluminum alloyed shell, sole DC 5V powered adapter, easy to carry;
3.With a 2.4-inch TFT color LCD, variable function soft keys and a rotary encoder, greatly enhances the usability of the instrument;
4 .Perfectly symmetrical two channels can be synchronized to work, and the phase adjustable;
5 .Two or multi-machines can be achieved multi-machines synchronous by TTL_IO port;
6 .Various basic function waveforms of sine, triangle, square, saw tooth,and pulse (duty adjustable);
7. The minimum output signal frequency to 10mHz;
8. With 100 sets (M00~M99) parameter storage locations, data of M00 can be loaded as power on;
9 .With 15 sets arbitrary waveform storage locations for users self-defining,memory depth of each set is 1024*10 bits;
10. Amplitude up to 20Vp-p as frequency< 15MHz; amplitude up to
15Vp-p as frequency>15MHz;
11. Minimum frequency resolution reaches 10µHz, minimum amplitude resolution to 10mV;
12 .With DC offset function (-100%~+100%);
13. With FSK function, hop frequency, carrier frequency and FSK rate can be set freely;
14 . Three trigger modes, manual trigger, internal CH2 trigger, external trigger, an arbitrary burst of 1~1048575 can be outputted;
15 . If the setting is +100%, any CMOS digital signal of 0~10V can be outputted;
16. Duty adjustment of pulse wave is accurate to 0.1%.
17 .The burst function can control the output pulses from 1 to 1048575.
18. Frequency sweep, amplitude sweep and duty sweep with an arbitrary start and end point.
19. With functions of frequency measurement, period measurement, positive and negative pulse width measurement, duty cycle measurement and counting.
20 . All parameters can be calibrated by internal program.
21. Powerful communication functions and the completely open communication protocol, which makes it very simple to the secondary development.
22 .After in connection with the PC, the PC can be used to control the instrument and arbitrary waveforms edited on the PC can be download to the instrument to output.

Specification:
Frequency Characteristics:
- Sine wave frequency range : 0Hz~ 2MHz
- Sawtooth wave : 0Hz~ 2MHz
- Triangular wave  : 0Hz~ 2MHz
- Square wave : 0Hz~ 2MHz
- Random wave : 0Hz~ 2MHz
- Resolution: 10uHz
- Frequency error: +/-5 × 10-6
- Frequency stability: +/-1× 10-6

Amplitude characteristics:
- Output impedance: 50ohm+/- 10%
- Amplitude range : 10mVp-p~20Vp-p(10mHz~15mHz)
- Amplitude resolution:10mVpp
- Amplitude Stability: +/-0.5%( Per5H )
- Amplitude errors: +/-1%+10mV) ( Frequency1KHz,20Vp-p)

The duty cycle of the square wave:
- Range: 0.1% to +99.9 %
- Resolution: 0.1%

Phase characteristics:
- Range: 0 ~ 359deg
- Resolution: 1deg

Sweep features:
- Sweep range: 10mHz~ 20MHz
- Scan time:1S~ 99S
- Scanning mode: linear sweep , logarithmic sweep

Frequency/Counter technical indicators :
- Frequency Range: 1Hz~ 60MHz(H.F)
- The minimum input voltage: 0.5Vp-p
- The maximum allowable input voltage: 20 Vp-p
- Count: Manual

- Size: 146x96x56 mm
- Power supply: 5V
- N.W: 416g

Package included:
- Signal Generator (2MHz)
