• Micro Electronic Conductor Slipring High Speed 6 Core External Dia 22mm

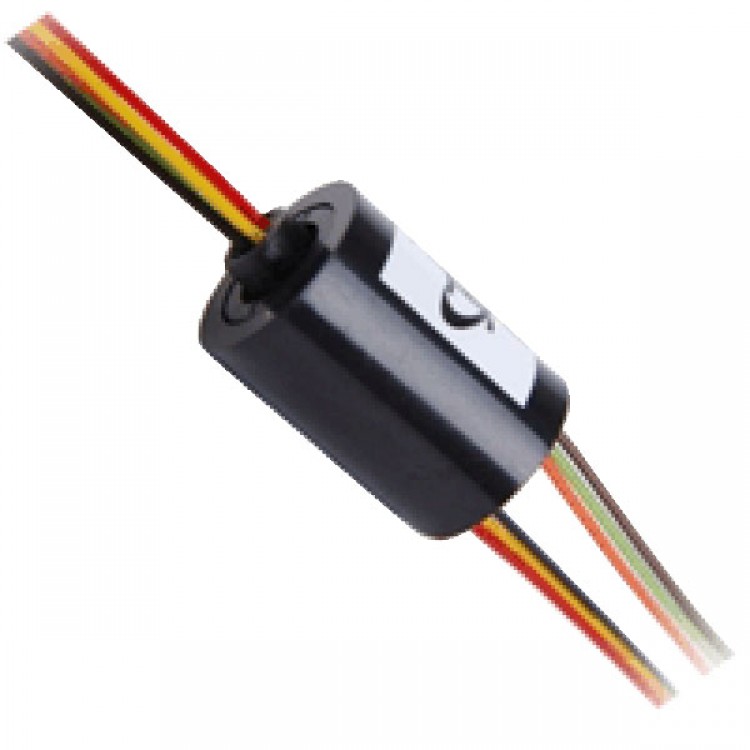

Micro Electronic Conductor Slipring High Speed 6 Core External Dia 22mm

Availability: In stock, usually dispatched in 1 business day

  • Price:$8.79
  • Price in reward points: 88 Reward Points: 1
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $8.61 $8.44 $8.17 $7.82 Contact US
Quantity:

Micro Electronic Conductor Slipring High Speed 6 Core External Dia 22mm

Electrical technology parameters:

Rated voltage: 240VDC----240VAC
Current: standard per ring is 2A
Lead length: 250mm or according to customer requirements
Isolation strength: 500VAC @60Hz  60s
Insulation resistance: 1000MΩ/500VDC
Dynamic contact resistor variation: < 0.01

Mechanical technology index:
Working speed: 0-250rpm
Protection level: IP51
Working temperature: -40 ~ +80
Installation: external circle and equipment rotating center hole bonding
Maximum torsion: 0.3 g / M
Tensile strength: radial 2KG, axial 0.5KG
Working life: 6 more than (depending on the speed and working environment)
Contact material: gold - Gold
