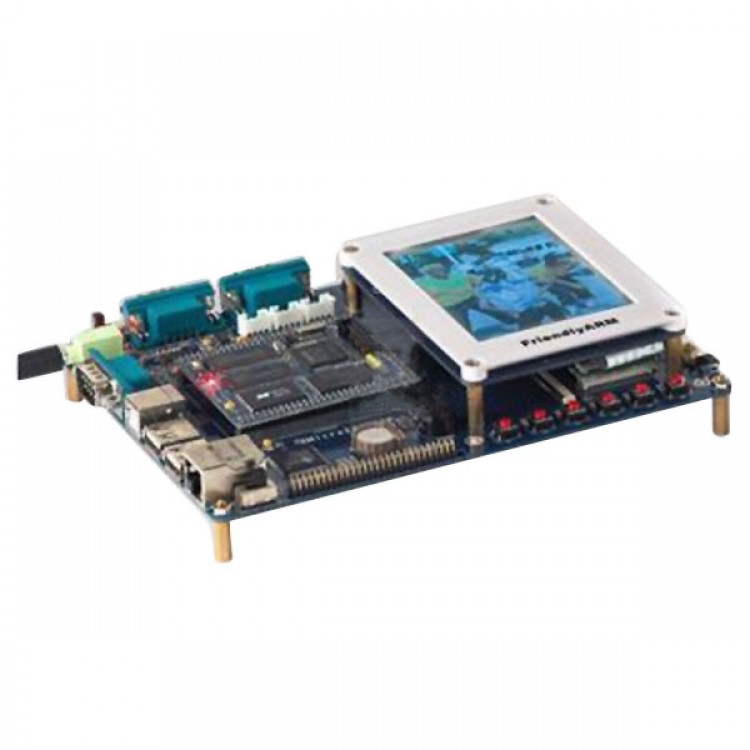

Micro2440 + 3.5" TFT Touch Screen LCD 400MHz S3C2440 256M Nand ARM9 Development Board
Description:
- Micro2440 | S3C2440 ARM9 Stamp Module
- FriendlyARM Micro 2440 Stamp Module with 400 MHz S3C2440 ARM9 processor.
- Specification: Stamp Module
- Dimension: 63 x 52 mm
- CPU: 400 MHz Samsung S3C2440A ARM920T (max freq. 533 MHz)
- RAM: 64 MB SDRAM, 32 bit Bus
- Flash: 64 MB / 128 MB / 256 MB / 1GB NAND Flash and 2 MB NOR Flash with BIOS
- Serial, SPI, USB, LCD, CMOS Camera Interface
- Analog Input and Output
- User Outputs: 4x LEDs
- Expansion headers (2.0 mm)
- Debug: 10 pin JTAG (2.0 mm)
- OS Support
- Windows CE 5 and 6
- Linux 2.6
- Android

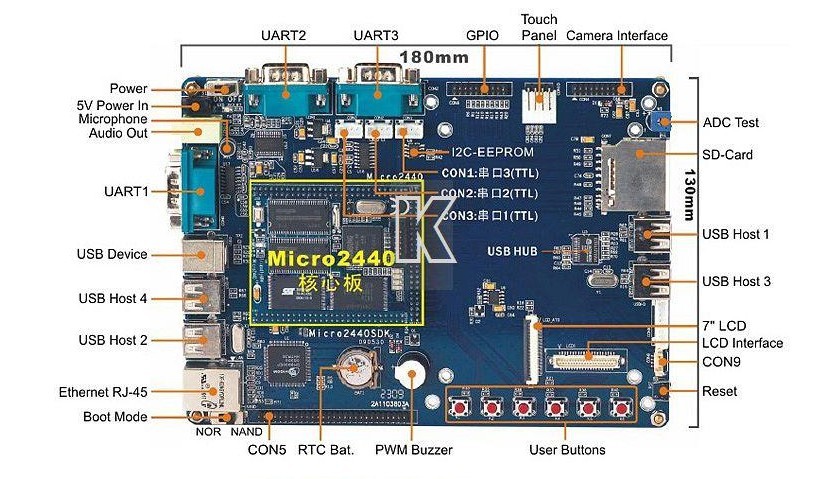

Specification:
-  SDK-Board
- Dimension: 180 x 130 mm
- EEPROM: 1024 Byte (I2C)
- Ext. Memory: SD-Card socket
- Serial Ports: 3x DB9 connector (RS232)
- USB: 4x USB-A Host 1.1, 1x USB-B Device 1.1
- Audio Output: 3.5 mm stereo jack
- Audio Input: 3.5mm jack (mono) + Condenser microphone
- Ethernet: RJ-45 10/100M (DM9000)
- RTC: Real Time Clock with battery
- Beeper: PWM buzzer
- Camera: 20 pin Camera interface (2.0 mm)
- LCD: 41 pin connector for FriendlyARM Displays (3.5" and 7") and VGA Board
- Touch Panel: 4 pin (resistive)
- User Inputs: 6x push buttons and 1x A/D pot
- Expansion headers (2.0 mm)
- Power: regulated 5V (DC-Plug: 1.35mm inner x 3.5mm outer diameter)


Package List:
- micro2440 learning development board (one floor board + one core board) 256 Nand Flash
- power adapter (+5 V)
- DB9 serial cable directly connected
- Cross-fiber
- USB cable
- a simple JTAG small plates +  JTAG download cable (available with H-JTAG debugging single-step simulation)
- 3.5-inch touch screen
- Original DVD disc
- The beautiful box
