Min XMOS Asynchronous USB to IIS+SPDIF Daughter Board 384K/ 32Bit No Support DSD

Min XMOS Asynchronous USB to IIS+SPDIF Daughter Board 384K/ 32Bit No Support DSD

Description:
- Old Version: do not support DSD, also it does not support DTS and AC3 source code output

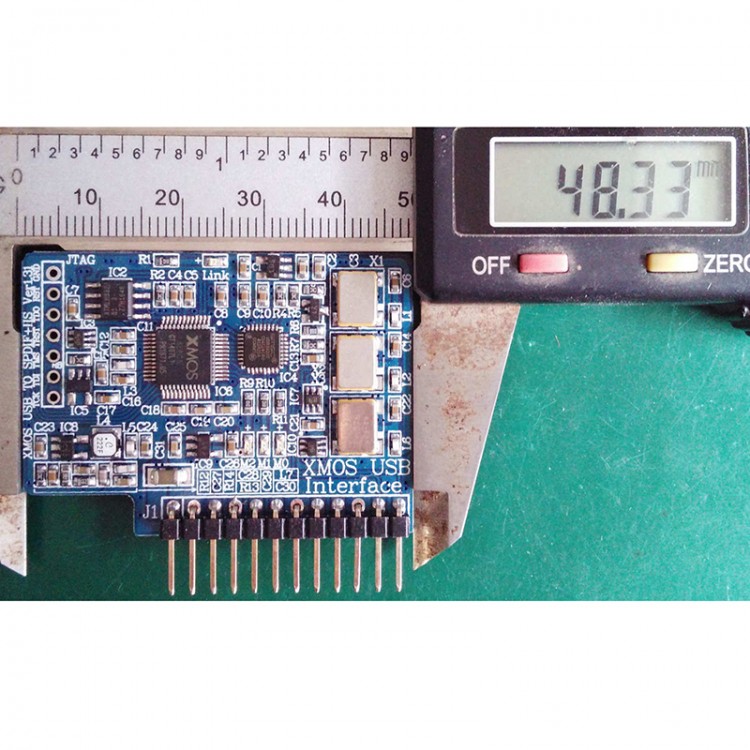

- 4-layer design, so that similar products in the smallest: This board is a full digital signal processing board is small enough to allow the various parts of signal lines shorter distance from the various parts is almost to be compressed to not be closer to the point, so a variety of signal loss due to distance problems caused negligible, this is One important factor in good sound.
- the use of non-public version of the power supply circuit, the core power supply used 2 LC filter circuit, every chip, every power supply pins, have at least one corresponding decoupling capacitor nearby on the side, so that the power lines wave interference to a very low, this is an important factor in the good sound of two.
- clean, reasonable PCB design, time-consuming hand-curved alignment, the key signal line used sparingly hole design, three important factors of good sound.
- professional factory OEM SMD soldering process, components orderly, non-manual welding comparable.
- SPDIF output support:
44.1K, 48K, 88.2K, 96K,
176.4K, 192K 32 / bit
- IIS output support:
44.1K, 48K, 88.2K, 96K,
176.4K, 192K, 352.8K, 384K 32 / bit
- Interface definition: (from left to right)
5V  GND DATA BCLK LRCK MCLK GND NC SPDIF GND D+ D-
