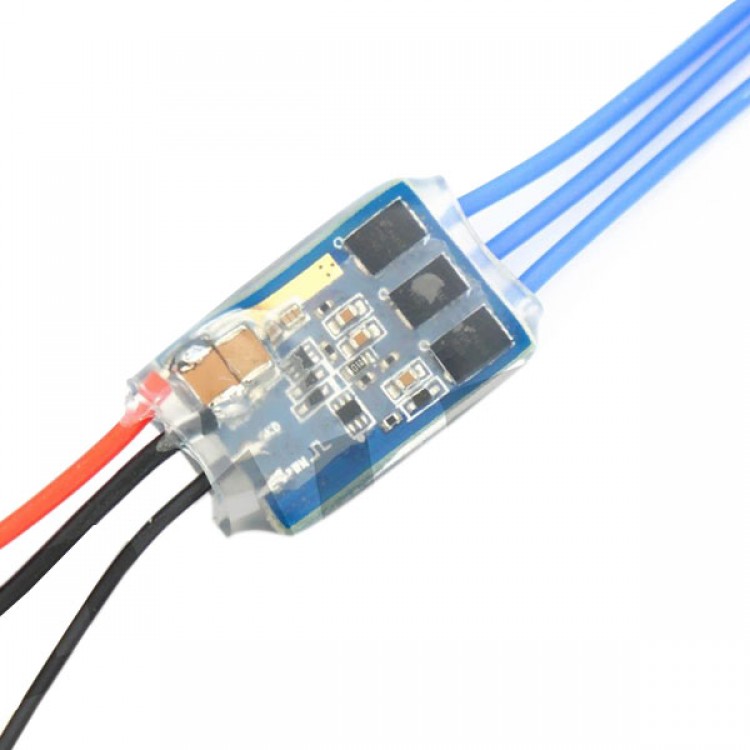

Mini 12A Brushless ESC SIMONK Programme for QAV Quadcopter FPV Photography
Features:
Note: this ESC is DIY version, cables are not welded
Internal procedures: Simonk (compatibility BL)
Continuous operating current: 12A
The maximum output current of 16A /15s
BEC output: no
Support input voltage: 2-3S does not support 4S
Body weight: 1.6g (6.5g/ line)
Size: 21.2*13.8mm
Support up to 400-500HZ frequency control.
According to test, DJI NAZE32 CC3D APM and MWC flight control, driving motor to 26000r/min
This ESC is not compatible with Sunnysky 2204 motor
