Mini digital Oscilloscope Pocket Storage Oscilloscope DSO201 V1.6 + X1 X10 robe
Description

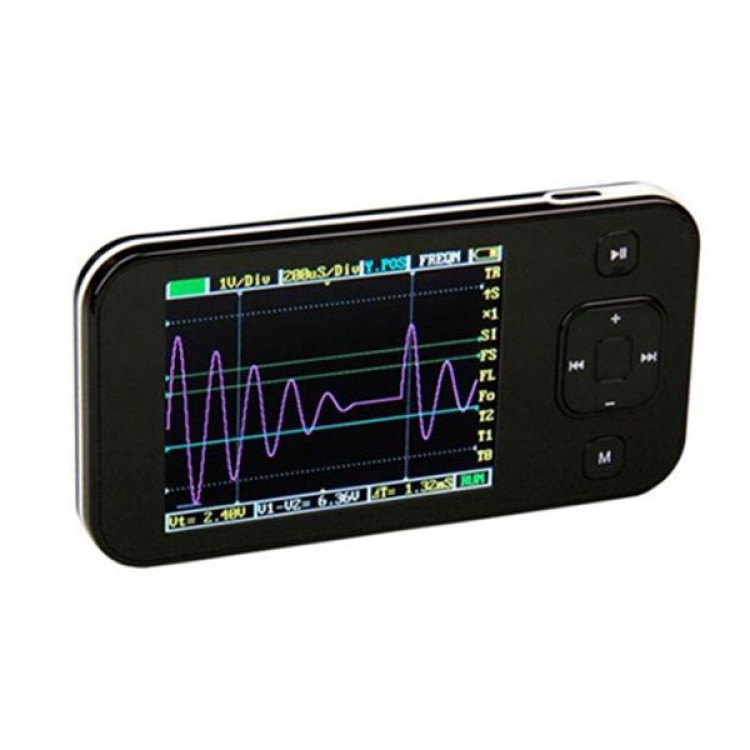

- DS0201 is a pocket size digital storage oscilloscope fulfills basic electronic engineering requirements. It is base on ARMCortexTM-M3compatible 32 bit platform, equipped with 320*240 color display, SD card capability, USB connection, and chargeable batteries. Weighs only 60g! Portable Digital Oscilloscope DIY Kit provides waveform viewing, pocket size and over 2 hours battery operation. This DIY kit is a open source code. The Schematic, PCB layout and program code is free for re-design. It is ideal for production test, research, design and education.
Specification:
- Display:2.8″ Color TFT LCD
- Display Resolution:320*240
- Display Color: 65K
- Analog bandwidt:0 - 1MHz
- Max sample rate:1Msps 12Bits
- Sample memory depth:4096 Point
- Horizontal sensitivity:1uS/Div～10S/Div (1-2-5 Step)
- Horizontal position:adjustable with indicator
- Vertical sensitivity
10mV/Div～10V/Div (with 1 probe)
0.5V/Div～10V/Div (with 10 probe)
- Vertical position:adjustable with indicator
- Input impedance:>500KΩ
- Max input voltage:80Vpp (by 1 probe)
- Coupling:- DC
- Trig modes:Auto, Norma, Single, None and Scan
- Functionalities:Automatic measurement: frequency, cycle, duty, Vpp, Vram, Vavg and DC voltage
- Precise vertical measurement with markers
- Precise horizontal measurement with markers
- Rising/falling edge trigger
- Trig level adjustable with indicator
- Trig sensitivity adjustable with indicator
- Hold/run feature
- Test signal
- Built-in 10Hz～1MHz (1-2-5 Step)
- Waveform storage: SD card
- PC connection via USB as SD card reader
- Upgrade: by bootloader via USB
- Power supply:3.7V Chargeable Lithium battery / USB
- Dimension (w/o probe):105mm X 53mm X 8mm
- PC connection::Mini USB B-Type
This is V1.6 Version
New features compared with V1.4：
1.Connectors are added between 2 PCB boards.
2.Modified the circuit layout of inputting part.
3.Using thin-film keypad, not need the gasket any more.
4.MCX precision plug probe is used.
Setup your SD card for first time usage:
1. Format SD card with FAT16
2. Download DS0201 Manual
3. Decompress it, and copy to the root folder of SD card.
Package List：
- DSO201 body x 1
- mini USB Cable
- 3.7v lithium battery with connector x 1
- Back plate x 1
- Mini Probe x 1
