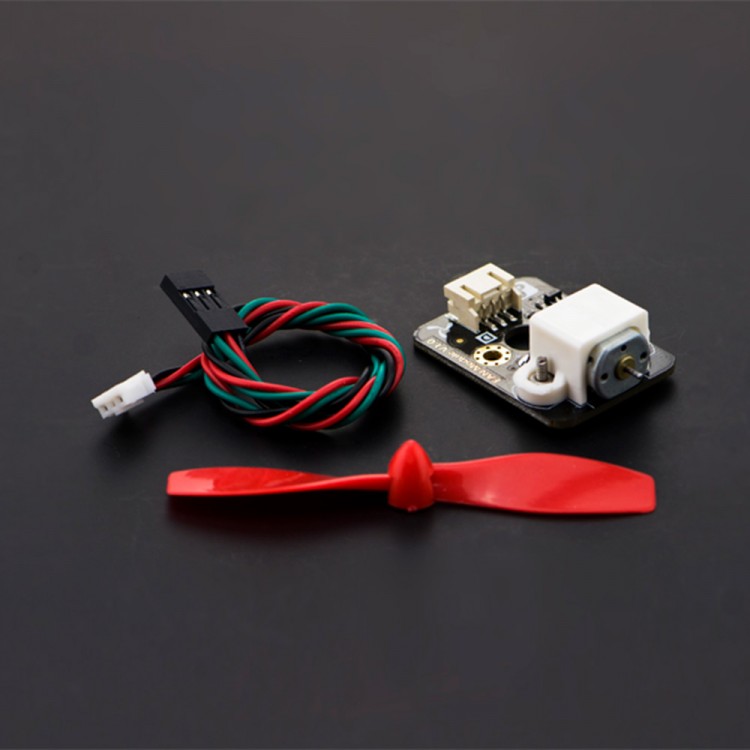

Mini Fan Module 3V-6V 15000rpm 0.111kg/cm PWM Interface Board with Propeller for Arduino DIY
Description:
Fan Module is the one that can do some interesting applications (electric fans, cooling, propeller) with other small modules. Can not only through the Arduino digital port to make switch, but also through the PWM to regulate the speed.
Usually because the Arduino port current is too weak to drive the motor, so we integrate driver and motor on this module, directly plug the V7 sensor on expansion board.
Specification:
- Working voltage: 3~6V
- Working temperature: -20~85 deg C
- No Load: 15000 rpm
- 6V non-load speed: 500 rpm
- 6V current: 40mA
- 6V blocking switch current: 360mA
- 6V torque: 0.111kg/cm
- Interface mode: PWM
- Size: mm 36*27*13
- Weight: 22G
More information: click here
Schematic diagram: click here
Package included:
- 1 x Fan Module
- 1 x Blade
- 1 x 3P connection cable
