Mini FPV 5.8G Wireless Camera 480TVL Built-in All-in-one AV Transmitter for Mini Quadcopter FPV
  • Mini FPV 5.8G Wireless Camera 480TVL Built-in All-in-one AV Transmitter for Mini Quadcopter FPV
  • Mini FPV 5.8G Wireless Camera 480TVL Built-in All-in-one AV Transmitter for Mini Quadcopter FPV
  • Mini FPV 5.8G Wireless Camera 480TVL Built-in All-in-one AV Transmitter for Mini Quadcopter FPV

  • SKU:26484
    (0 reviews)   Write a review(Get Thanksbuyer Points!)
  • Availability: In Stock     Reward Points: 7
  • Price:$66.90
  • Price in reward points: 669
  • Buy more, save more
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $65.56 $64.22 $62.22 $59.54 Contact US

Mini FPV 5.8G Wireless Camera 480TVL Built-in All-in-one AV Transmitter for Mini Quadcopter FPV

Features:
- No interference 5.8G frequency, 24CH selectable(only can choose one of 24 channels)
- Micro Mini size, smaller than fingers
- Light weight: 8g
- 0.008LUX illumination
- 90/50 degree view angle selection
- Low power consumption, make sure long time work life.
- 25mW transmit power, wireless transmit 100m



Specifications:

working frequency

5.8G internal 1

CH1: 5865MHz; CH2: 5845MHz; CH3: 5825MHz; CH4: 5805MHz.

CH5: 5785MHz; CH6: 5765MHz; CH7: 5745MHz; CH8: 5725MHz

choose one of 24 working channel

5.8G external

CH9: 5705MHz; CH10: 5685MHz; CH11: 5665MHz; CH12: 5645MHz.

CH13: 5885MHz; CH14: 5905MHz; CH15: 5925MHz; CH16: 5945MHz

5.8G internal 2

CH17: 5733MHz; CH18: 5752MHz; CH19: 5771MHz; CH20: 5790MHz.

CH21: 5809MHz; CH22: 5828MHz; CH23: 5847MHz; CH24: 5866MHz

Antenna

external antenna

RF output power

25mW

Transmit distance

100m

Pixel

NTSC: 720(H)×480(V)

PAL: 720(H)×576(V)

Horizontal definition

480TV Lines

Lowest illumination

0.008Lux/F1.2

Lens & View Angle

0.5mmF1.2 / 90 °ï¼ˆTE60A)0.5mmF1.2 / 50 °ï¼ˆTE60B)

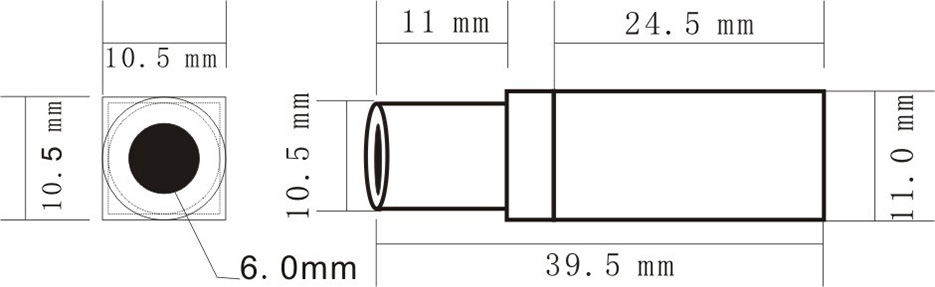

Size (L x W x H)

39.5mmx 10.5mm x 10.5mm(TE60A) 33.0mm x 10.0mm x 10.0mm(TE60B)

MC900D:11.5mm x 11.5mmM x 14-17mm

Net weight

20g

MC900D: 2g

Current

230mA

Voltage

DC 3.7V

Working environment

- 20°C ~ + 50°C, humidity 85﹪


Package list:
- 1 x Mini FPV 5.8G Wireless Camera 480TVL Built-in All-in-one transmitter
