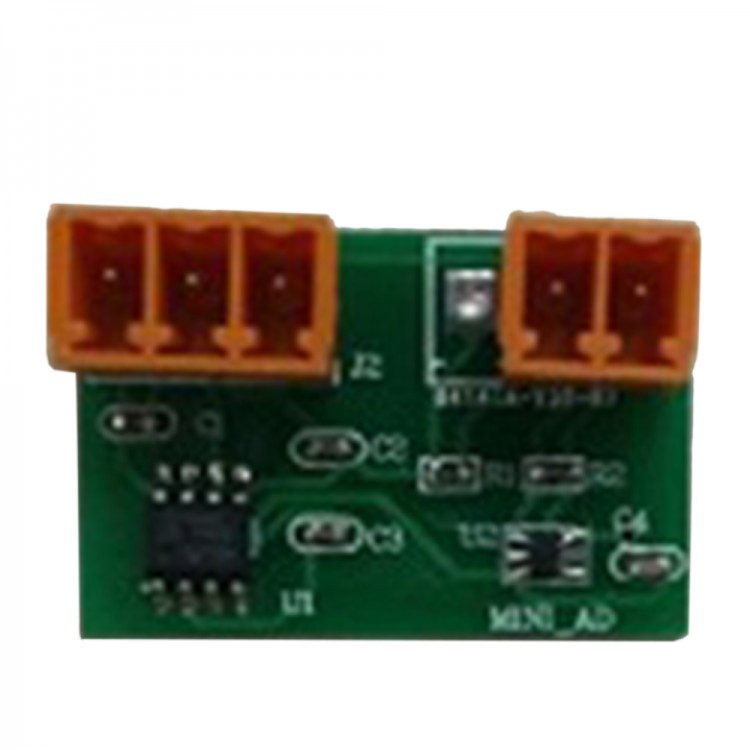

• Mini FSR Single Channel Analog Circuit Resistance to Voltage Module Pressure Transmitter for DIY

Mini FSR Single Channel Analog Circuit Resistance to Voltage Module Pressure Transmitter for DIY

Availability: In stock, usually dispatched in 1 business day

  • Price:$15.27
  • Price in reward points: 153 Reward Points: 2
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $14.96 $14.66 $14.20 $13.59 Contact US
Quantity:

Mini FSR Single Channel Analog Circuit Resistance to Voltage Module Pressure Transmitter for DIY

Specification:

- Compatible with 5V power input and 3.3V power input
- Single channel

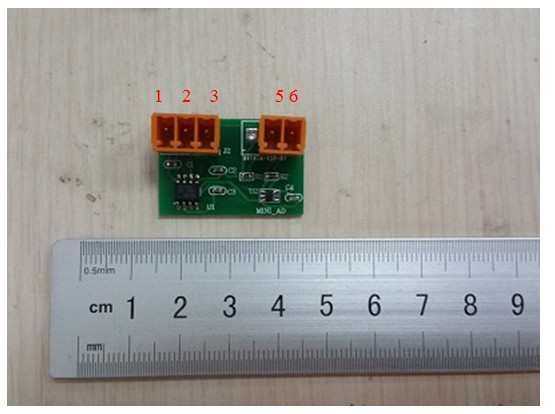

- FSR series sensor pin 2 direct access to 5, 6
- Output voltage: Vout=Vcc/ (R/Rref+1), Vout is the output voltage; R is the resistance of the pressure sensor (KOhm); VCC is the power supply voltage; Rref (R2) is the feedback resistor (5.1K);

- 1 for VCC,
- 2 for the ground,
- 3 for the signal output

Package included:
- 1 x FSR Single Channel Analog Circuit module
