Mini STM32F429II Core Board Updated SDRAM NAND STM32F429IGT6

Availability: In stock, usually dispatched in 1 business day

  • Price:$120.00
  • Price in reward points: 1200 Reward Points: 12
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $117.60 $115.20 $111.60 $106.80 Contact US
Quantity:

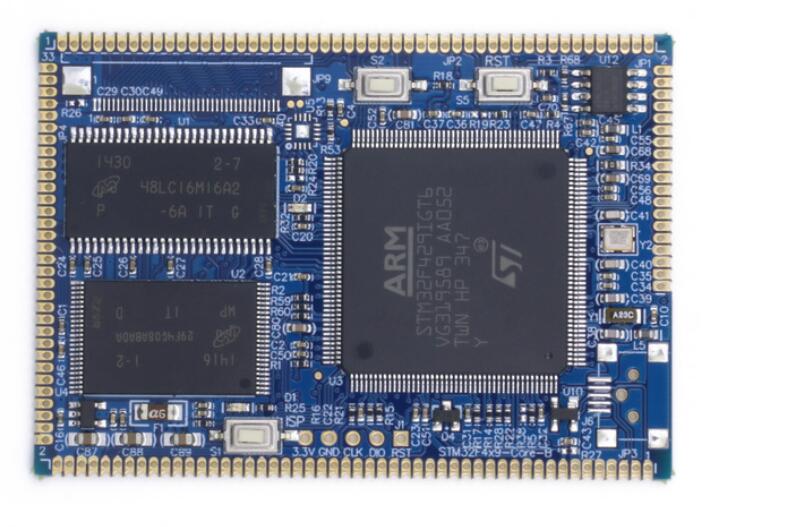

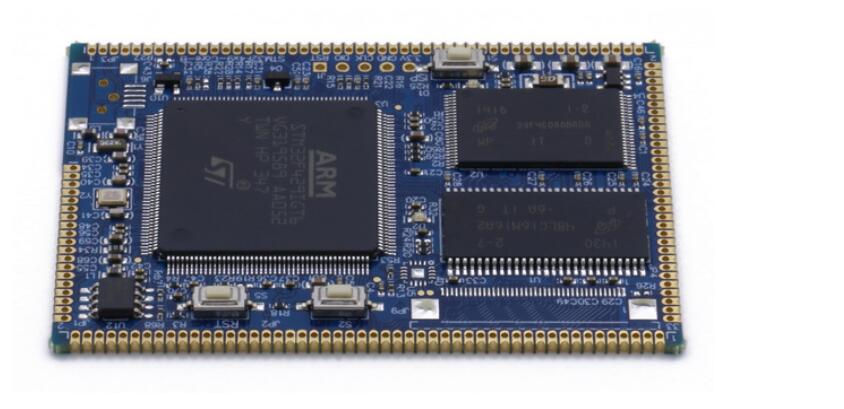

STM32F429II Core Board Updated SDRAM NAND STM32F429IGT6
Mini











Description:

- The core board processor STM32F429IIT6—— 2M FLASH,updated STM32F429IG STM32F429IIT6—- 2M FLASH procesor,on-board 256M Bit SDRAM(micron,16 bit data width),4G Bit NAND Flash(micron); - Support 4.3 inch and 7.0 inch RGB interface touch screen

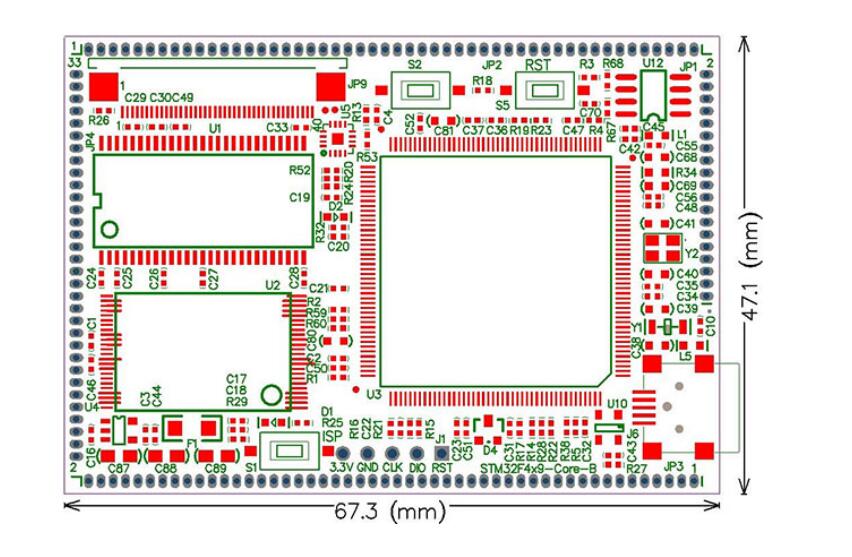

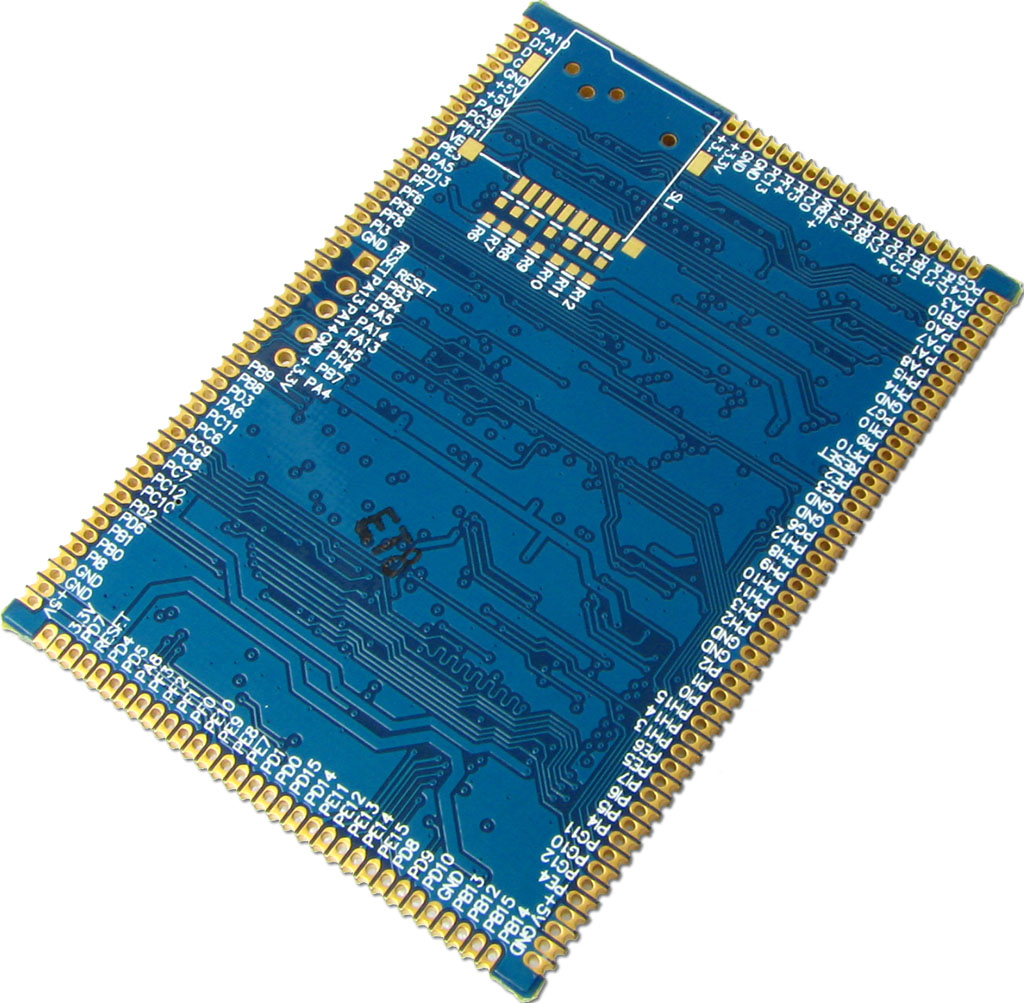

- Dimension:67.3x47.1mm,1.27mm pitch,stamp hole deign
- STM32F429IIT6 processor:2M FLASH;STM32F429IG processor:1M FLASH.
- Support simulator(emluator):Ulink2,JLINKV9,ST-LINK2.

Processor parameter:
Ø  Core:ARM 32-bit Cortex™-M4 CPU with FPU, Adaptive real-time accelerator (ART Accelerator™) allowing 0-wait state execution from Flash memory, frequency up to 180 MHz, MPU, 225 DMIPS/1.25 DMIPS/MHz (Dhrystone 2.1), and DSP instructions
Ø  Memories:
- Up to 2 MB of Flash memory organized into two banks allowing read-while-write
- Up to 256+4 KB of SRAM including 64-KB of CCM (core coupled memory) data RAM
- Flexible external memory controller with up to 32-bit data bus: SRAM,PSRAM,SDRAM, Compact
Flash/NOR/NAND memories:
    Ø  LCD parallel interface
    •8080/6800 modes
    Ø  LCD-TFT
    controller up to SVGA resolution with dedicated Chrom-ART Accelerator™ for enhanced graphic content creation (DMA2D)
    Ø  Clock, reset and supply management
    •1.8 V to 3.6 V application supply and I/Os
    •POR, PDR, PVD and BOR
    •4-to-26 MHz crystal oscillator
    •Internal 16 MHz factory-trimmed RC (1% accuracy)
    •32 kHz oscillator for RTC with calibration
    •Internal 32 kHz RC with calibration
    •Sleep, Stop and Standby modes
    •VBATsupply for RTC, 20×32 bit backup registers + optional 4 KB backup SRAM
    Ø  3×12-bit, 2.4 MSPS ADC:
    up to 24 channels and 7.2 MSPS in triple interleaved mode
    Ø  2×12-bit D/A converters
    Ø  General-purpose DMA:
    16-stream DMA controller with FIFOs and burst support
    Ø  Up to 17 timers:
    up to twelve 16-bit and two 32-bit timers up to 180 MHz, each with up to 4 IC/OC/PWM or pulse counter and quadrature (incremental) encoder input
    Ø  Debug mode:
    •Serial wire debug (SWD)& JTAG interfaces
    •Cortex-M4 Embedded Trace Macrocell™
    Ø  Up to 168 I/O ports with interrupt capability
    •Up to 164 fast I/Os up to 90 MHz
    •Up to 166 5 V-tolerant I/Os
    Ø  Up to 21 communication interfaces
    •Up to 3 × I2C interfaces (SMBus/PMBus)
    •Up to 4 USARTs/4 UARTs (11.25 Mbit/s, ISO7816 interface, LIN, IrDA, modem control)
    •Up to 6 SPIs (45 Mbits/s), 2 with muxed full-duplex I2S for audio class accuracy via internal audio PLL or external clock
    •1 x SAI (serial audio interface)
    •2 × CAN (2.0B Active) and SDIO interface
    Ø  Advanced connectivity
    •USB 2.0 full-speed device/host/OTG controller with on-chip PHY
    •USB 2.0 high-speed/full-speed device/host/OTG controller with dedicated DMA, on-chip full-speed PHY and ULPI
    •10/100 Ethernet MAC with dedicated DMA: supports IEEE 1588v2 hardware, MII/RMII
    Ø  8- to 14-bit parallel camera interface up to 54 MBs/s
    Ø  Cryptographic acceleration: hardware acceleration for AES 128, 192, 256, Triple DES, HASH (MD5, SHA-1, SHA-2), and HMAC(Only STM32F439)
    Ø  True random number generator
    Ø  CRC calculation unit
    Ø  96-bit unique ID
    Ø  RTC: subsecond accuracy, hardware calendar

On-board Function:
- Whole board technical grade component

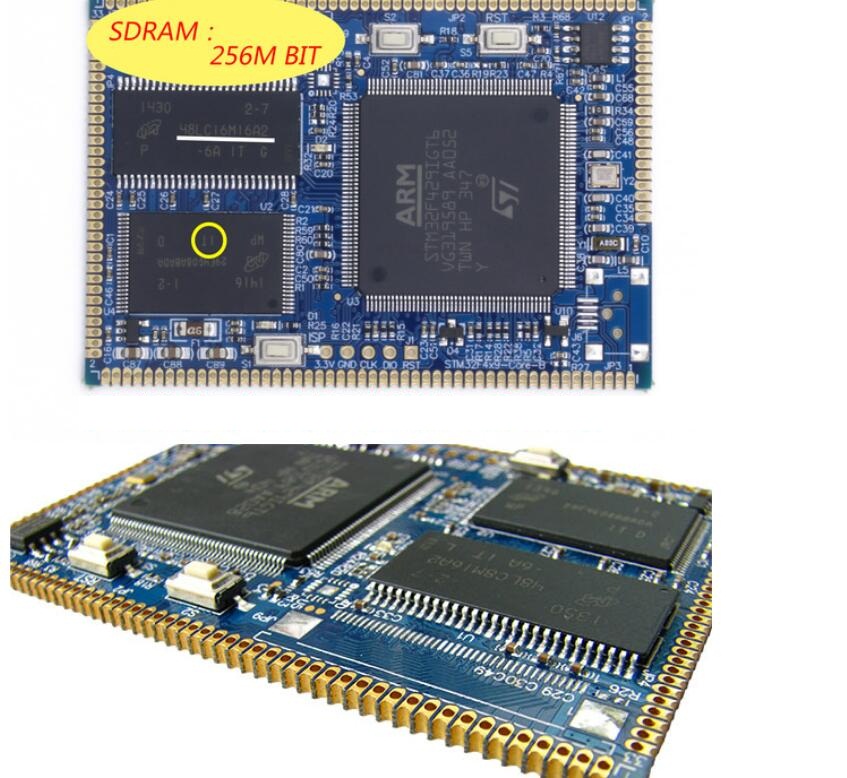

- 256M Bit SDRAM(micron,16 bit data width)
- 4G Bit NAND Flash(micron)

Package List:
- 1 x STM32F429II Core Board
