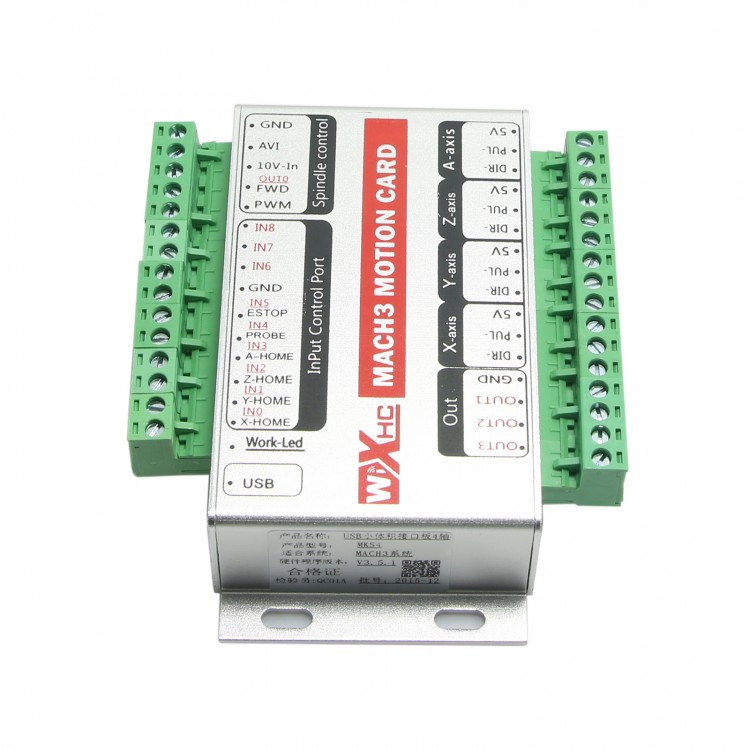

Mini Version Upgrade XHC MK3 CNC Mach3 USB 3 Axis Motion Control Card Breakout Board 200KHz Support Windows 7
Description:
- Support Windows XP Win7 operation system
- USB does not need to be installed driver, can use once connected to PC for all Windows version
- Support USB hot plug, can monitor USB connection state at any time, during Mach3 working, USB cable plug out and then plug in, also can work normally
- Support 3 axis linkage, including 3 axis linkage
- Has 200KHz pulse output, connect to servo/ stepper
- Has state indicator, can show all kinds of state
- Has 9 input IO, except axis pulse, there are four output
- All IO port is isolated, strong anti interference, stable capacity
- Support XHC series wireless electronic handpulse
- Support mainbox PWM speed adjusting output, support mainaxis pulse+direction output, support mainaxis 0-10V analog voltage speed adjusting output
- Dimension: 10*6.3*3cm(terminal is not included)
