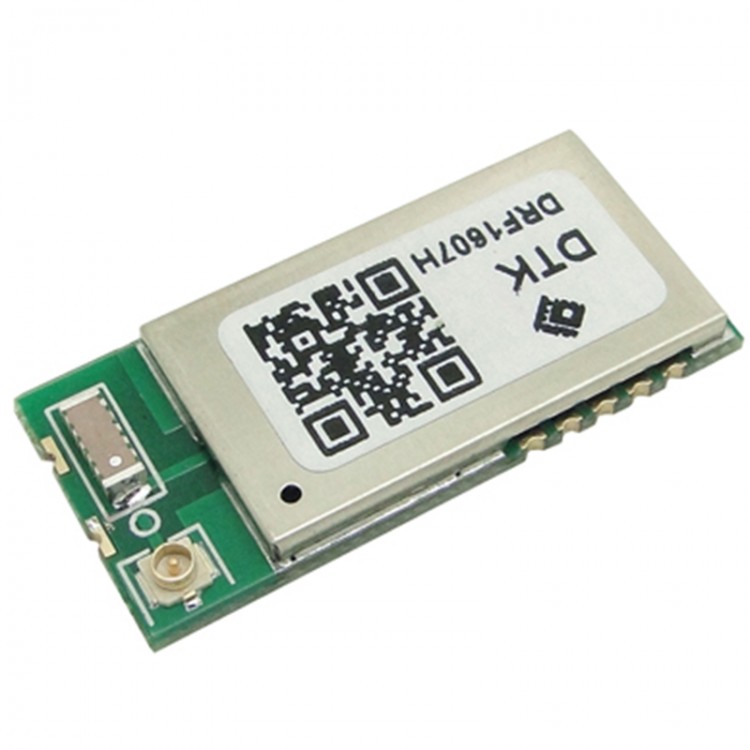

Mini Wireless Serial No Network DC 3.3V 2.4G 1.6KM Zigbee Module DRF1607H-WU

Mini Wireless Serial No Network DC 3.3V 2.4G 1.6KM Zigbee Module DRF1607H-WU

Description:
Wireless serial module is to simplify the Zigbee protocol , without networking , a simple point to point , multipoint communications. Since no network, the product is suitable for frequent power outages, fast-moving products, regardless of where the product moves , as long as the parameters are set correctly , that is able to communicate. Compared with Zigbee module, communication simple, but there is no automatic routing capabilities. It is not the Zigbee Module, cannot communicate with Zigbee Module either.

Parameter:
- Input voltage: DC3.3V range: 2.6V-3.6V
- Temperature: -40~85 degree C
- Weight: 7.4g
- Wireless protocol:  Zigbee2007
- Weirless fraquency: 2.4G(2460MHz,user can change channel(2405MHz-2480MHz, 5MHz) through seriel command
- Speed: 38400bps, can be 2400bps,4800bps,9600bps,19200bps,38400bps,57600bps,115200bps, seriel check: None, can be None, 0dd,Even
- Transmitting distance: visible, broad,1600m
- Operating current: Transmitting:120mA(Max.),80MA(average), receiving:45MA(Max.Standby:40MA(mAX.)
- Receiving sensitivity: -110 dbm
- Main chip: CC2530F256,256KFLASH, Zigbee SOC chip
- Configurable node: can be set as the main node, sub-node
- Interface: UART 3.3V, TX-RX. Built-in RS485 direction control, can drive chip RS485,RS232

Package included:
- 1 x Wireless Module
