Mini Xadow-M0 3.3V Mbed Enabled ARM Cortex-M0 Board Development Board Module

Availability: In stock, usually dispatched in 1 business day

  • Price:$61.09
  • Price in reward points: 611 Reward Points: 6
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $59.87 $58.65 $56.81 $54.37 Contact US
Quantity:

Mini Xadow-M0 3.3V Mbed Enabled ARM Cortex-M0 Board Development Board Module

Description:

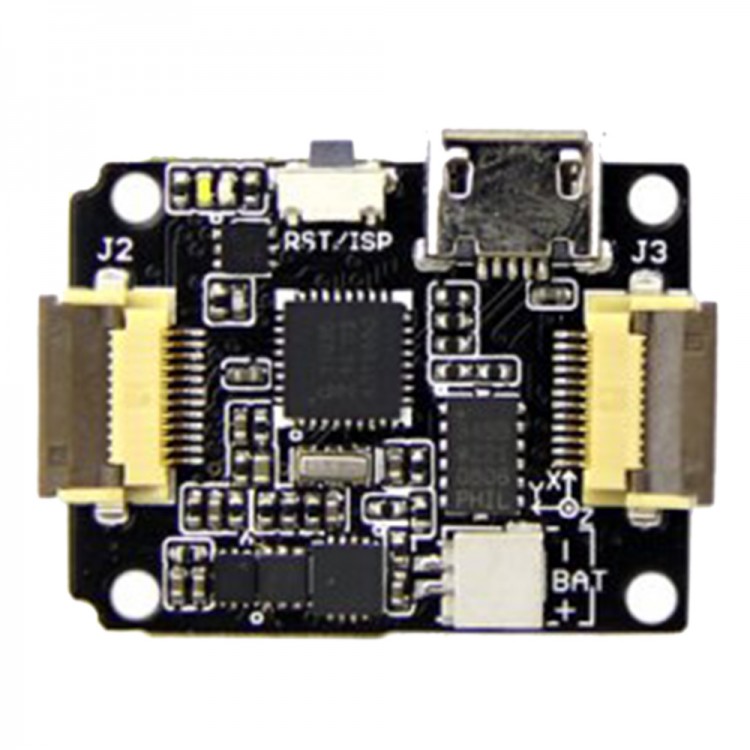

Xadow M0 is an mbed enabled development board with Xadow form factor. It's based on NXP LPC11U35 and designed for rapid prototyping. Xadow is a series of flexible electronic modules including sensors, displays and etc. Several Xadow modules can be cascaded to create interactive objects easily.

Features:
- Mbed enabled
- Online development tools
- Easy to use C/C++ SDK
- Lots of published libraries, projects
- Xadow form factor
- Extremely small and flexible
- Cascade connection
- Drag-n-drop programming
- NXP LPC11U35 MCU
- Low power ARM Cortex-M0 Core
- 48MHz, 64KB Flash, 10KB RAM, 4KB EEPROM
- USB Device, 2xSPI, UART, I2C
- Integrated with accelerometer: ADXL345

Specification:
- Work Voltage: 3.3V
- DC Current per IO pin :20mA
- Digital I/O Pins: 16
- Analog Input Channels: 2
- Operating Temperature: -20~70 ℃
- Dimensions: 25.43mm x 20.35mm

Package included:
- 1 x Xadow-M0 Mbed Enabled ARM Cortex-M0 Board
