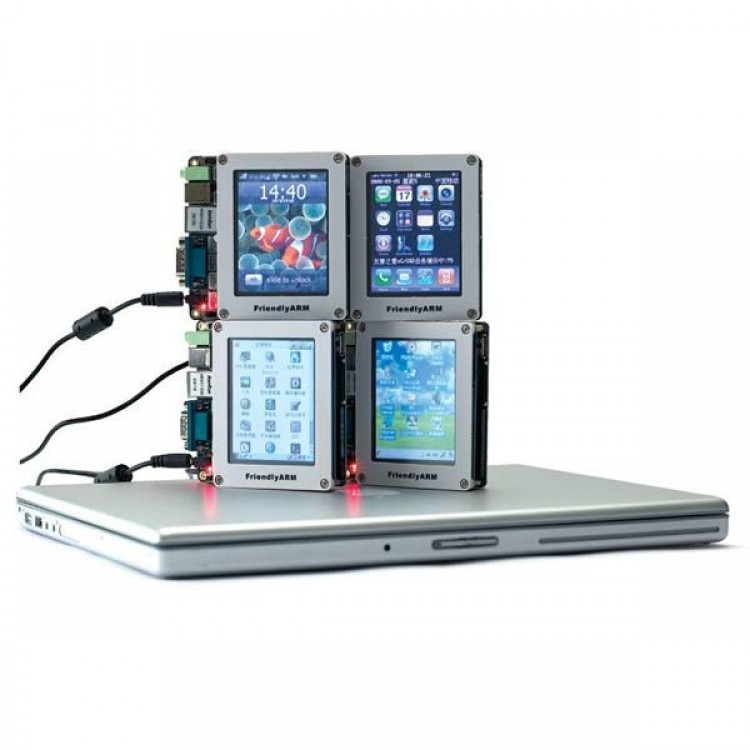

Mini2440 + 3.5'' TFT Touch Screen LCD 128M 400MHz S3C2440 ARM9 Development Board
Description:
- FriendlyARM Mini 2440 SBC (Single-Board Computer) with 400 MHz S3C2440 ARM9 processor. The board measures 10 cm x 10 cm, ideal for learning about ARM systems.

Specification
- Dimension: 100 x 100 mm
- CPU: 400 MHz Samsung S3C2440A ARM920T (max freq. 533 MHz)
-  RAM: 64 MB SDRAM, 32 bit Bus
-  Flash: 64 MB / 128 MB / 256 MB / 1GB NAND Flash and 2 MB NOR Flash with BIOS
-  EEPROM: 1024 Byte (I2C)
-  Ext. Memory: SD-Card socket
-  Serial Ports: 1x DB9 connector (RS232), total: 3x serial port connectors
-  USB: 1x USB-A Host 1.1, 1x USB-B Device 1.1
-  Audio Output: 3.5 mm stereo jack
-  Audio Input: Connector + Condenser microphone
-  Ethernet: RJ-45 10/100M (DM9000)
-  RTC: Real Time Clock with battery
-  Beeper: PWM buzzer
-  Camera: 20 pin Camera interface (2.0 mm)
-  LCD Interface
- STN Displays
-  TFT Displays
-  41 pin connector for FriendlyARM Displays (3.5" and 7") and VGA Board
-  Touch Panel: 4 wire resistive
-  User Inputs: 6x push buttons and 1x A/D pot
-  User Outputs: 4x LEDs
-  Expansion: 40 pin System Bus, 34 pin GPIO, 10 pin Buttons (2.0 mm)
-  Debug: 10 pin JTAG (2.0 mm)
-  Power: regulated 5V (DC-Plug: 1.35mm inner x 3.5mm outer diameter)
- Power Consumption: Mini2440: 0.3 A, Mini2440 + 3.5" LCD: 0.6 A, Mini2440 + 7" LCD: 1 A
 OS Support
-  Windows CE 5 and 6
-  Linux 2.6
- Android

Package List:
- mini2440 Learning Development Board 128M NandFlash (128M/256M/1GNandFlash optional)
- Power adapter (+5 V)
- DB9 directly connected serial Cable
- Crossover cable
- USB Cable
- Summary JTAG small plates +  JTAG download cable (available with H-JTAG debugging single-step simulation)
- 3.5-inch touch screen (with exquisite touch screen panel, presented the touch pen)
- Package box
