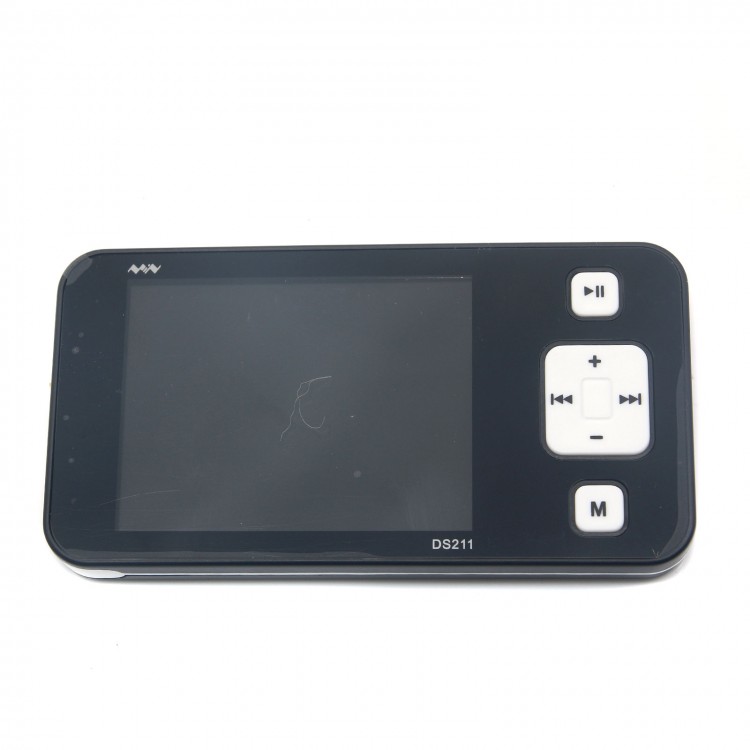

MiniDSO DS211 Digital Oscilloscope USB 200KHz Bandwidth Handheld OSC DSO211 Upgraded from DSO201

Availability: In stock, usually dispatched in 1 business day

  • Price:$87.95
  • Price in reward points: 880 Reward Points: 9
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $86.19 $84.43 $81.79 $78.28 Contact US
Quantity:

MiniDSO DS211 Digital Oscilloscope USB 200KHz Bandwidth Handheld OSC DSO211 Upgraded from DSO201

Parameters:
- MCU: STM32F103VC
- ADC: MCU internal ADC
- Number of channels: 1 Analog channel + 1 internal channel
- Analog bandwidth: 200KHz
- The maximum sampling rate: 1MSa / s
- Maximum storage depth: 8K
- Horizontal scanning speed: 1uS / Div ~ 2S / Div (1-2-5 step)
- Vertical Sensitivity: 20mv / Div ~ 10V / Div (1-2-5 step)
- Input impedance: 1MΩ
- Coupling: DC / AC
- Trigger mode: Rising / falling edge trigger
- Auto adjustment mode: AUTO_FIT
- Operation waveform: -A, RecA, A + RecA
- Signal output: Square wave, sine wave, triangular wave, sawtooth wave
- Trigger mode: Auto, Normal, Single, None, Scan
- Measured values: Signal frequency / period / duty cycle,
   Voltage peak-to-peak value / effective value / maximum value / minimum value / average value
- Storage: 8MB built-in U disk
- Can be installed APP Quantity: 1
- Operation: Press the key
- USB interface: MicroUSB
- Battery: 550mAh
- Screen size: 2.8 inches
- Screen resolution: 320 × 240
- Size: 106.5mmX55.7mmX11.5mm
- Weight (with battery): 65g
- Open source: application layer open source
- Certification: CE / FCC

Applications: Applications:
- Maintenance (AC / DC switching power supply or inverter, elevator and building fire-fighting equipment, industrial control circuit)
- Hardware maintenance or software debugging RS232, RS485, I2C, CAN and other communications interface circuits, LED display and keyboard scan driver circuit, brushless motor drive circuit
- Overhaul audio devices and circuits, electronic toys and remote control models, automotive electronics circuits
- School teaching and leaching  and electronic production
- The observation of slow signal change (such as: relay and switch contacts jitter, battery charge and discharge curve, the load transient response power supply, temperature sensor characteristic measurement)
- The power supply and the related electronic circuit (SCR voltage regulation, power factor correction, electronic energy-saving lamps, sodium lamps, dysprosium lamp mercury xenon lamps lamp drive circuit)

Package includes:
- 1 x DS211 Oscilloscope
- 1 x DS211 MCX probe (Attenuation ratio: 1:1)
- 1 x Manual
