• MINNOWBOARD-MAX-DUAL 5V 1.33GHz Development Board - X86 Intel Atom E3825 Dual Core Module for DIY

MINNOWBOARD-MAX-DUAL 5V 1.33GHz Development Board - X86 Intel Atom E3825 Dual Core Module for DIY

Availability: In stock, usually dispatched in 1 business day

  • Price:$255.35
  • Price in reward points: 2554 Reward Points: 26
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $250.24 $245.14 $237.48 $227.26 Contact US
Quantity:

MINNOWBOARD-MAX-DUAL 5V 1.33GHz Development Board - X86 Intel Atom E3825 Dual Core Module for DIY

Description:

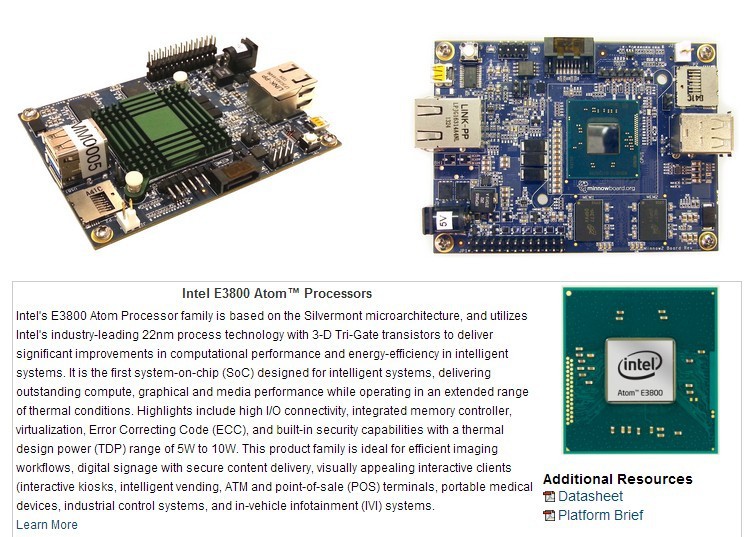

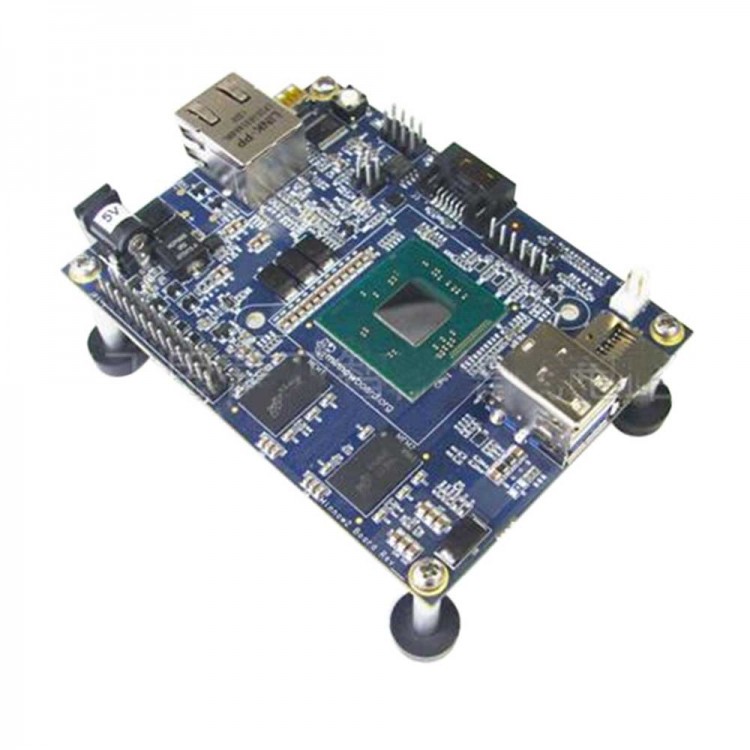

MinnowBoard MAX is a compact and powerful development board for both professionals and makers. The open hardware design is potential for endless customization and integration. It uses the 64-bit Intel Atom E38xx Series SoC CPU, integrated Intel HD graphics. Video and digital audio output is via HDMI, with analog audio to be available separately via an expansion board. Other I/O include: microSD, SATA2, USB 3.0 (host), USB 2.0 (host), Gigabit Ethernet, I²C, SPI, and serial debug via FTDI cable (not included). Eight buffered GPIO pins are available as well, with 2 pins supporting PWM.

Package included:

- 1 x MINNOWBOARD-MAX-DUAL Development Board
