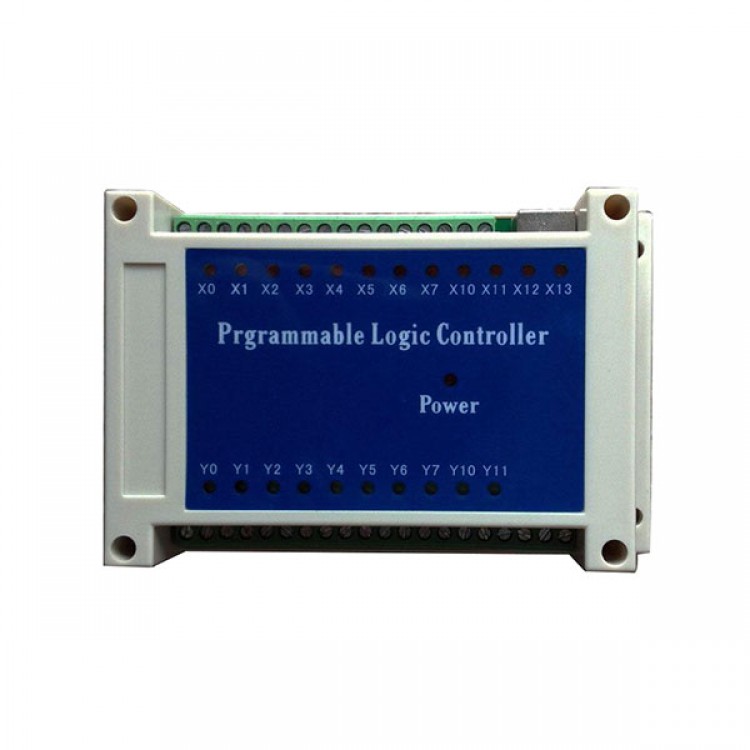

Mitsubishi PLC FX2N PLC Domestic Support Online Download Monitor Touch Screen

Availability: In stock, usually dispatched in 1 business day

  • Price:$38.35
  • Price in reward points: 384 Reward Points: 4
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $37.58 $36.82 $35.67 $34.13 Contact US
Quantity:

Mitsubishi PLC FX2N PLC Domestic Support Online Download Monitor Touch Screen

Description:

Models: XT2N - 16 MDR - A - V1 power supply: ac 220 v baud rate: 9600 communication mouth: and RS485 serial port
Type: straight ladder diagram (FX2N), relay points: 16 points fully engaged in GX8.5 above board
A: this product is currently supports the following resources:
Soft components:
X0 - X7, Y0 - Y7,
M0 - M255, M512 - M768 electricity (keep) and
S0 - S255,
Timer T0 - T39 (100 ms), T200 - T215 (10 ms timer), T250 - T255 (100 ms) integrating timer,
New C100 - C0 - C39 C119 (16 outage keep the counter) C200 - C203 (32-bit add power to keep counter), C235 (32-bit high speed add power to keep counter),
D0 - the D60, D512 - D527 (power to keep)
Where V0 - V7, Z0 - Z7. P0 - P7
Special soft components:
M8000 (running monitoring contact), M8001 (operation monitoring the contact).
M8002 (initial pulse contact), M8003 (initial pulse reverse contact).
M8004 (error indicating contact).
M8011 clock pulse (10 milliseconds), the M8012 clock pulse (100 milliseconds), M8013 (1 second clock pulse), M8014 (1) clock pulse.
M8020 (zero), M8021 (borrow), M8022 (the carry flag).
M8025 (high-speed PWM period 1 kh fixed frequency, 8 0 ~ 100% duty cycle adjustable)
M8029 terminated (instructions).
Keep contact M8033 (memory).
M8034 (output contact) is prohibited.
M8200 - M8203 (C200 - C203 counting direction).
M8235 (C235 counting direction).
D8000 (monitoring timer Settings).
D8012 (maximum scanning time).
D8140 (Y0 counting pulse output register)
To support constant:
Scope: K - 32768-32767, or 0-32768; H range: 0 - FFFFH.
32 digits operation is not currently supported.
Maximum memory capacity: 8000 steps.
2: this product is currently supported command set
This product is currently supported Fx2N the following command:
Basic instructions:
LD, LDI, AND, OR, ORI, ANI, INV, OUT (T, C, S),
SET (T, C, S), the RST (T, C, S), ANB, ORB, the LDP, LDF, ANDP,),
ORP, ORF, PLS, PLF, MPS, MRD, MPP, INV, MC, MCR, NOP, END.
Contact more instructions:
LD LD > =, < =, LD >, LD <, LD < >, LD =, AND >, AND < =, AND >, AND < AND < >, AND =, OR > =, OR < =, OR >, OR <, OR < > OR =.
Step by step instructions:
STL, RET.
Transmission and more instructions:
MOV, SMOV, CML, BMOV FMOV, XCH, BCD, BIN, CMP, ZCP, FMOV.
Arithmetic instructions:
To ADD, SUB, the MUL, DIV, INC, DEC, WAND, WOR, WXOR, NEG.
Cyclic shift instruction:
ROR, ROL, RCR, RCL, SFTR SFTL, WSFR, WSFL
FIFO command:
SFWR, SFRD
Cycle instruction:
FOR the NEXT.
Data processing instructions:
ZRST, DECO, ENCO, SUM, BON, scheme, SQR, ASCI, HEX, SWAP
Application process instructions:
CJ (maximum 8 address), CALL (maximum nesting level 5, 8 subroutine), SRET, FEND, WDT, FOR nested (maximum level 5), NEXT.
Interrupt instruction:
IRET, EI, DI
Convenient instructions:
ALT.
High-speed processing instructions:
REF, REFF, MTR, PWM (support Y0, Y1 all along the way, can be used at the same time), the SPD (only support X0 and all the way), PLSY (only support Y0) all the way
Peripheral I/O ports:
MTR, TKY, DSW, SEGD.
Peripheral SER command:
The acsi.
Serial data sent:
The Rs
This product fully support P instructions such as MOVP, Fx2N function is not currently supported instructions all the 32 bit, which does not support function before the instruction to add D, such as DMOV.
