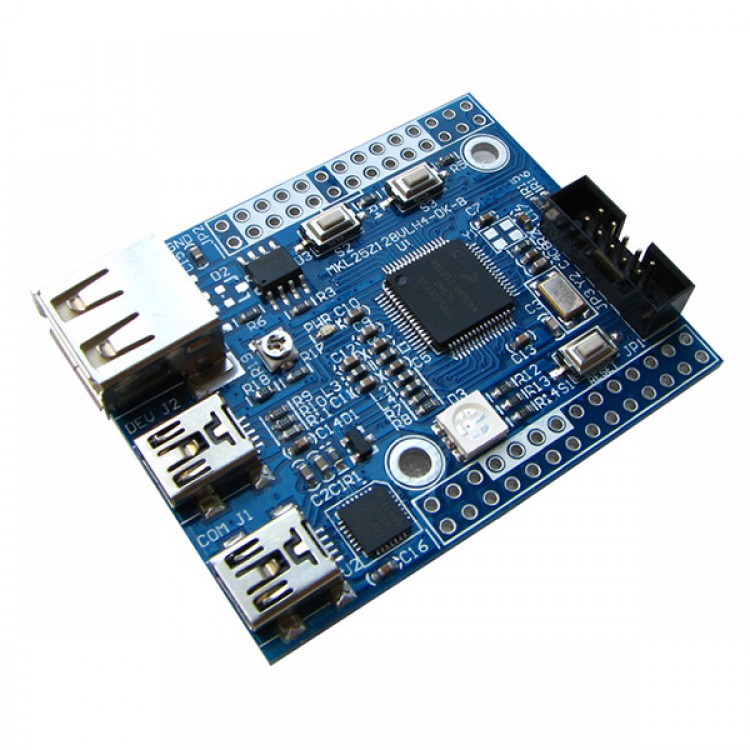

MKL25Z128 Development Board Freescale CortexM0+ Module Support USB Host/device

Description:
Operating Characteristics

- Voltage range: 1.71 to 3.6 V
- Flash write voltage range: 1.71 to 3.6 V
- Temperature range (ambient): -40 to 105°C

Performance
- Up to 48 MHz ARM? Cortex-M0+ core
- Memories and memory interfaces
- Up to 128 KB program flash memory
- Up to 16 KB RAM
Clocks
- 32 kHz to 40 kHz or 3 MHz to 32 MHz crystal oscillator
- Multi-purpose clock source

System peripherals
- Nine low-power modes to provide power optimization based on application requirements
- 4-channel DMA controller, supporting up to 63 request sources
- COP Software watchdog
- Low-leakage wakeup unit
- SWD interface and Micro Trace buffer
- Bit Manipulation Engine (BME)
- Security and integrity modules
- 80-bit unique identification (ID) number per chip
- Human-machine interface
- Low-power hardware touch sensor interface (TSI)
- General-purpose input/output
- Analog modules
-16-bit SAR ADC
- 12-bit DAC
- Analog comparator (CMP) containing a 6-bit DAC and programmable reference input

•Timers
- Six channel Timer/PWM (TPM)
- Two 2-channel Timer/PWM (TPM)
- Periodic interrupt timers
- 16-bit low-power timer (LPTMR)
- Real-time clock

•Communication interfaces
- USB full-/low-speed On-the-Go controller with onchip transceiver and 5 V to 3.3 V regulator
- Two 8-bit SPI modules
- Two I2C modules
- One low power UART module
- Two UART modules

Configuration:
- USB2.0 Built-in PHY (full speed) from a device interface
- USB2.0 Built-in PHY)  full speed device interfaces (master-Slave share)
- USB to serial
- RGB LED
- Two function buttons
- An adjustable resistor
- All I/O lead to the edge of the plate part pin concentrated arrangement according to the function

Package list:
- 1 x MKL25Z128 development
- 1 x mini usb
- 1 x cd
